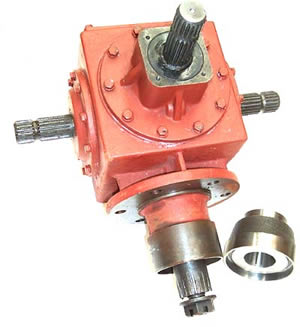

150 HP 4 Way Gearbox
150 HP 20 Spline 4 Way G'box
Part No. B8671 - 1.188:1   Lower - ratio REDUCTION (fits 1000 RPM PTO). Through Shafts 1:1 Ratio
Part No. B8674 - 1:1.46   Lower - ratio INCREASE (fits 540 RPM PTO). Through Shafts 1:1.467 Ratio
Part No. B8676 - 1:1.93   Lower - ratio INCREASE (fits 540 RPM PTO). Through Shafts 1:1.93 Ratio
SPECIFICATIONS

A = 280mm (11")
B = 225mm (8.85")
C = 225mm (8.85")
SPARE PARTS
PART No.
DESCRIPTION
B9470
Oil Seal - Input Early type 90mm OD
B9063
Oil Seal - Input Late type 95mm OD
B6673
Oil Seal - Through Shaft
B4347
Through Shaft
B8677
Input Gear 29 Teeth for B8676 G'Box
B8678
Output Gear 15 Teeth for B8676 G'Box
B4348
 Input Shaft 20 Spline
B4356
 Outer Bearing - Input Shaft + Cross Shaft
B4357
 Rear Bearing - Input Shaft
B4358
 Bearing - Output Shaft, 2 Required
B3258
 Slotted Nut 1 3/8" x 18 UNF
B3262
 Lower Output Shaft
B4359
 Side Plate Gasket
B4360
 Input Gasket
B9070
 Lower Output Seal
B1228
 Lower Output Nut

HOUSING:
SHAFTS:
GEARS:
SEALS:

BEARINGS:
OIL:
WEIGHT:
SHAFTS: 		60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-140

1 3/4" x 20 spline
Standard Rotation
