150 HP 20 Spline "T" Series Gearbox
150 HP 20 Spline "T" Series G'box
Part No. B8669 - 1:1 ratio
Part No. B8675 - 1:1.3 ratio

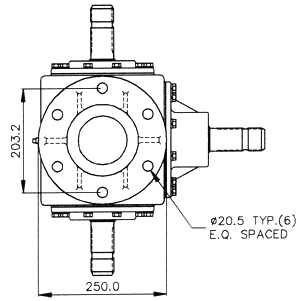

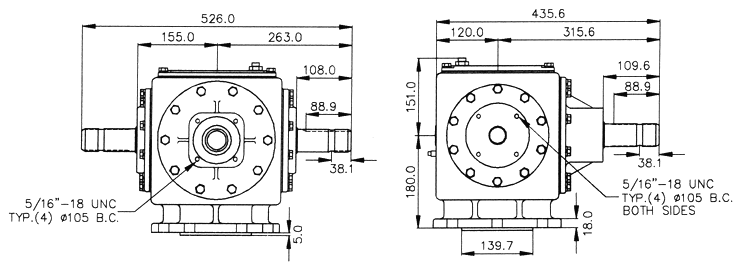

SPECIFICATIONS

A = 280mm (11")
B = 225mm (8.85")
C = 225mm (8.85")
HOUSING:
SHAFTS:
GEARS:
SEALS:

BEARINGS:
OIL:
WEIGHT:
SHAFTS:
60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-140

1 3/4" x 20 spline
Standard Rotation
SPARE PARTS
PART No.
DESCRIPTION
Oil Seal - Input Early type 90mm OD
Oil Seal - Input Late type 95mm OD
Oil Seal - OUTPUT
Through Shaft
Input Shaft 20 Spline
Outer Bearing - Input Shaft + Cross Shaft
Rear Bearing - Input Shaft
Slotted Nut 1 3/8" x 18 UNF
Side Plate Gasket
Input Gasket
