P.T.O: 200 mm Combined Freewheel - Safety Clutch
200 mm (8") Safety Clutch

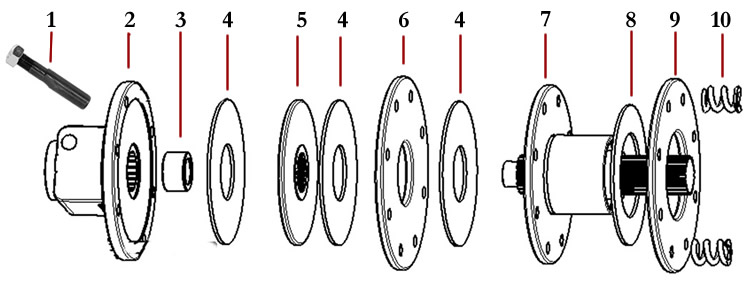

200mm (8") OD COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS
REF
PART No.
DESCRIPTION
1
Cotter Clamp Bolt and Nut
2
1 3/8" x 6 Spline Base ASSEMBLY (includes bush and clamp bolts)
1 3/4" x 20 Spline Base ASSEMBLY (includes bush and clamp bolts)
1 3/4" x 6 Spline Base ASSEMBLY (includes bush and clamp bolts)
3
Bush for B3720 Base
Bush for B4720 / B5720 Base
4
Facing 165mm (6 1/2") x 63mm (2 1/2") - 3 req
5
Drive Plate for B1301 Overrun ASSEMBLY
Drive Plate for B1302 Overrun ASSEMBLY
6
Pressure Plate - 3mm (0.118") Thick
7
Freewheel Unit 1 3/4" x 20 spline for 150 HP 4 plate clutch
Freewheel Unit 1 3/8" x 6 spline for 150 HP 4 plate clutch
8
Front Facing 160mm (6 19/64") x 96mm (3 25/32") - 1 req
9
Outer Pressure Plate 200mm (8") OD x 95mm (3 3/4") ID
10
Zinc Plated (Silver) Spring (8 req.)
Blue Heavy Duty Spring (8 req.)
