P.T.O: 200 mm Combined Freewheel - Safety Clutch
200 mm (8") Safety Clutch

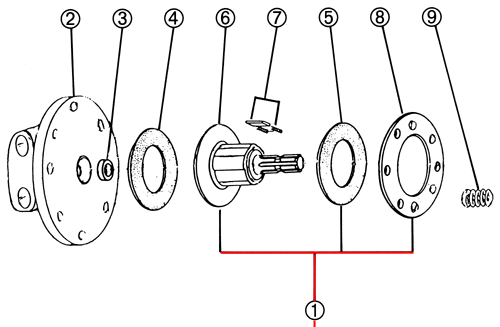

200 mm (8") OD COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS

Conversion Kit
for Standard 8" Clutch
REF
PART No.
DESCRIPTION
1
KIT - Converts standard B3605 Clutch to Combined Freewheel
2
1 3/8" x 6 Spline Base ASSEMBLY (includes bush)
3
Bush 1 1/8" ID
4
Rear Facing 165mm (6 1/2") x 63mm (2 1/2") - 1 req
5
Front Facing 160mm (6 19/64") x 96mm (3 25/32") - 1 req
6
Freewheel Unit 1 3/8" x 6 spline for 100 HP 2 plate clutch
Special reverse rotation unit as above for B7259 clutch
Freewheel Unit 1 3/4" x 20 spline for 100 HP 2 plate clutch
7
Repair Kit for Freewheel Unit (NOT Recommended if body worn)
8
Outer Pressure Plate 200mm (8") OD x 95mm (3 3/4") ID
9
Zinc Plated (Silver) Spring (8 req.)
Blue Heavy Duty Spring (8 req.)
