Yoke Type Safety Clutches

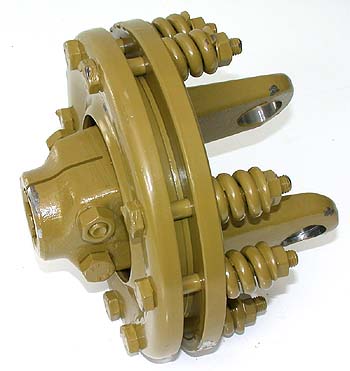

Yoke Type Disk Safety Clutch
Part No.
Description
Shaft Serieses
Torque
HP/kW
@540rpm
HP/kW
@1000rpm
@Spring Length
No. of
Plates
180mm (7")
1 3/8" x 6 Splines

467NM (340 ft-lb)
35HP (26kW)
56HP (42kW)
33mm (1.3")
2
200mm (8")
1 3/8" x 6 Splines
844NM (622 ft-lb)
60HP (45kW)
96HP (72kW)
30mm (1.18")
2
200mm (8")
1 3/8" x 21 Splines
200mm (8")
1 3/4" x 20 Splines
200mm (8")
1 3/8" x 6 Splines
844NM (622 ft-lb)
60HP (45kW)
96HP (72kW)
30mm (1.18")
2
200mm (8")
1 3/8" x 6 Splines
1450NM (1069 ft-lb)
100HP (75kW)
160HP (120kW)
29mm (1.156")
2
200mm (8")
1 3/8" x 21 Splines
200mm (8")
1 3/4" x 20 Splines
200mm (8")
1 3/4" x 20 Splines
2170NM (1600 ft-lb)
150HP (112kW)
240HP (180kW)
25.4mm (1")
4
200mm (8")
1 3/4" x 6 Splines

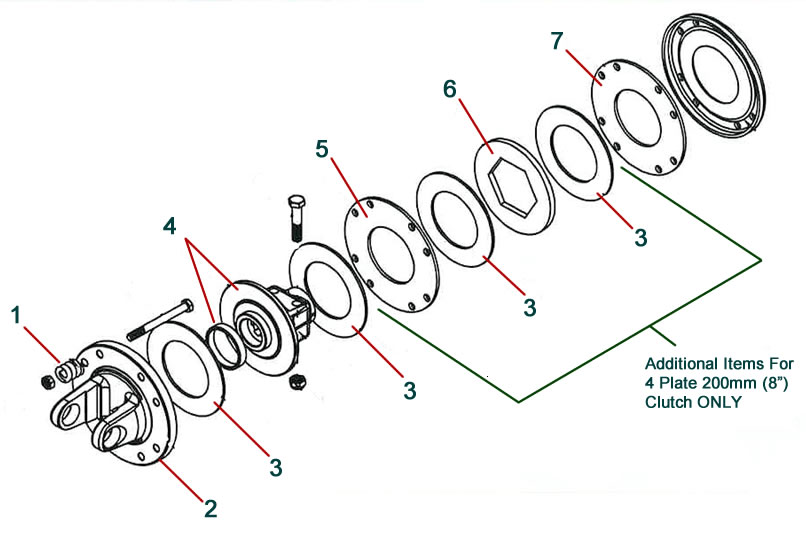

Yoke Type Disk Safety Clutch

SPARE PARTS

Ref
Part No
Description
Application
1
Spring All 2 Plate Clutches
W2600 Series 4 Plate Clutch
2
Clutch Flange Yoke 4 Series 180mm 7" Clutch
6 Series 200mm 8" Clutch
8 Series 200mm 8" Clutch
W2600 Series 200mm 8" Clutch
3
Clutch Disk 140 x 85mm 5.5" x 3.46" 4 Series 2 Plate 180mm 7" Clutch (2 REQ)
Clutch Disk 160 x 85mm 6.3" x 3.46" 6 Series 2 plate 200mm 8" Clutch (2 REQ)
Clutch Disk 160 x 97mm 6.3" x 3.8" W2600 Series, 8 Series2 & 4 Plate
200mm 8" Clutch (2 or 4 REQ)
4
Drive Hub 1 3/8" x 6 Spline 140mm Dia 4 Series 2 Plate 180mm 7" Clutch
Drive Hub 1 3/8" x 6 Spline 160mm Dia. 6 & 8 Series 2 plate 200mm 8" Clutch
Drive Hub 1 3/8" x 21 Spline 160mm Dia. 6 & 8 Series 2 plate 200mm 8" Clutch
Drive Hub 1 3/4" x 20 Spline 160mm Dia. 6 & 8 Series 2 plate 200mm 8" Clutch
Drive Hub 1 3/4" x 20 Spline 160mm Dia. W2600 Series 4 Plate 200mm 8" Clutch
5
Center Pressure Plate 97mm 3.8" ID 200mm 8" 4 Plate Clutches only.
6
Intermediate Drive Plate 200mm 8" 4 Plate Clutches only.
7
Outer Pressure Plate 4 Series 180mm 7" Clutch
Outer Pressure Plate 85mm 3.46" ID 6 Series 200mm 8" Clutch
Outer Pressure Plate 97mm 3.8" ID 8 Series, 2600 Series 200mm 8" Clutch
