GENERAL - Implement Mounting Pins
Implement Mounting Pins
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

ONLY BARE-Co PROVIDES:

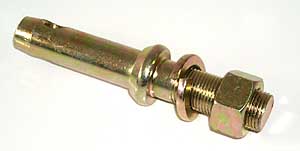

  • Cold forged pins to 1 1/8" (28.6mm) dia for consistent grain flow, maximum strength and superior surface finish.
    (Our competitors do not have the capability to cold form pins from 28.6mm dia. Wire)

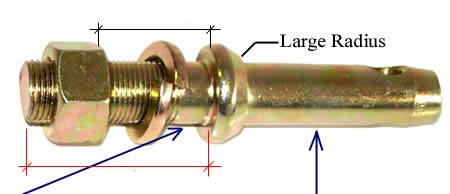

  • Large radius at fracture point (difficult to achieve in cold forging).
  • Guaranteed base material to min. specifications S1040 carbon steel.
FORGET ABOUT DRAWINGS!
JUST DETERMINE IMPLEMENT HOLE DIA.
and TRACTOR CATEGORY
  • All pins correct length to accept stay bars or next linkage category bush upgrade.
  • Various length stepped shoulders replaced by straight shank to increase strength and reduce your inventory. Stepped types available for 40 year old Ferguson tiller and mowers.
  • Only BARE-Co have invested in special thin wall nuts, to provide clearance for straight shank design on plough cross shafts etc.
Suits Frame Thickness 3/8" to 1 1/8" (10 - 30mm)
SHOULDER/SHANK DIA
(IMPLEMENT HOLE DIA)
TRACTOR LINKAGE CATEGORY (PIN DIA)
PART No.
Replaces OLD TYPE
Stepped Shoulder Pins

3/4" UNF (19mm)

CAT 1 = 22mm

B198

CAT 2 = 28.6mm

B197

7/8" UNF (22mm)

CAT 1 = 22mm

B200

CAT 2 = 28.6mm

B202

CAT 3 = 36.5mm

B2520

1" SAE (25.4mm)
14TPI

CAT 1 = 22mm

B101

CAT 2 = 28.6mm

B102

CAT 3 = 36.5mm

B2521

1 1/8" UNF (28.6mm)

CAT 1 = 22mm

B201

CAT 2 = 28.6mm

B203

CAT 3 = 36.5mm

B2522

WELD-IN AND NON-STANDARD
LOWER IMPLEMENT MOUNTING PINS
NOTE: standard cold forged pins (B200 above / B215 etc below)
are much CHEAPER than the pins below
!

PART No

DESCRIPTION

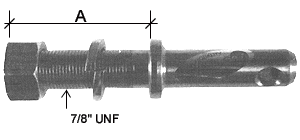

Extra Long Thread Shank: "A" = 75mm



B2406

CAT 1 Replaces
I.H.C. 802585R2

B2407

CAT 2 Replaces
I.H.C. 802586R2

B199

Suits old FERGUSON

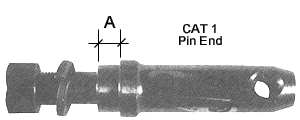

TILLER "A" = 16mm
Replaces 646038MI
CAT 1 Pin
22mm dia. shoulder



B2951

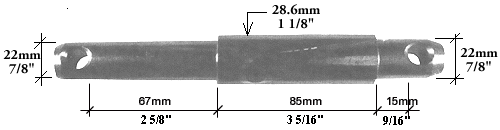

Suits M.F. 532 MOWER
CAT 1 Pin

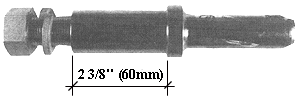

shoulder 28.6mm dia x 60mm long
Replaces
195531MI - 195532M1



B205

DUAL CAT 1-2 Suits
Frame Thickness
10 TO 25mm
Suits 1" (25.4mm)
HOLE drilling



B206

Suits 1 1/8"
(28.6mm) HOLE drilling

B210

Suits (22mm) drilling

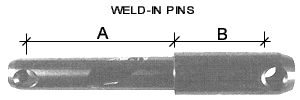

A = 90mm B = 55mm



B214

Suits (28.6mm) drilling
A = 50mm B = 80mm

B7214

Suits (50mm) RHS
(28.6mm) drilling
A = 55mm B = 110mm

NOTE: standard cold forged pins (B200 above / B215 etc below) are much CHEAPER than the pins above!

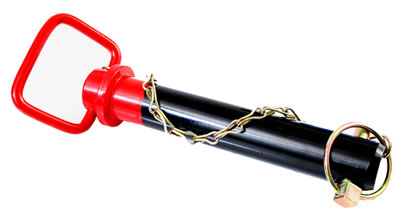

SLIP-IN LOWER IMPLEMENT MOUNTING PINS
STANDARD SINGLE CATEGORY PINS
PART No
TRACTOR LINKAGE CATEGORY (PIN DIA.)
USEABLE LENGTH
B215
CAT 1 (7/8" = 22mm)
4 1/8" = 105mm
B216
CAT 2 (1 1/8" = 28.6mm)
CAT 2 (1 1/8" = 28.6mm)
4 3/4" = 120mm
(includes handle)
B4216
5 1/8" = 130mm
B2517
CAT 3 (1 7/16" = 36.5mm)
5" = 127mm
8" = 203mm
B3517
CAT 3 (1 7/16" = 36.5mm)
DUAL CATEGORY LOWER PINS
PART No
APPLICATION
B100
AUST / NZ APPLICATION
eg. SHEARER - CONNOR SHEA - BERENDS
B7343
JARRETT
