GENERAL - Drawbar Pins
Drawbar Pins
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
Standard Drawbar Pins

DIAMETER

PART No.

EFFECTIVE LENGTH

1/2" (12.7mm)
3 1/2" (90mm)
5/8" (16mm)
4 1/4" (108mm)









DIAMETER

PART No.

EFFECTIVE LENGTH

3/4"
B408
3 3/4"
B404
6 1/4"
7/8"
B405
1"
B410
1 1/8"
B2662
4 3/4"
B412
6 1/4"
B6412
7 1/4"
8 1/4"
Replaces CASE
232616A3
1 1/4"
B415
6 1/4"
1 3/8"
B416
7 1/4"
1 1/2"
B417

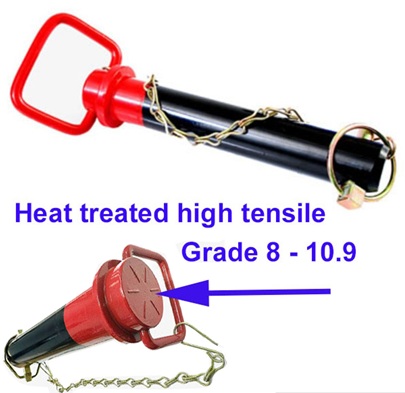

"Red Head" Heat Treated Grade 8 High Tensile Drawbar Pins


DIAMETER

PART No.

EFFECTIVE LENGTH

1"
B8410
6 1/4"
B6410
8 1/4"
1 1/8"
4 3/4"
B9412
6 1/4"
B8412
7 1/4"
8 1/4"
Replaces CASE
232616A3
1 1/4"
B8415
6 1/4"
B6415
8 1/4"
1 3/8"
B8416
7 1/4"
9 1/4"
1 1/2"
B9417
7 1/4"
9 1/4"
2"
7 1/4"
9 1/4"
All pins are cold forged or machined down from solid bar to provide integral safety collar.
Base material min. S1040 Carbon Steel - fitted with linch pin and chain ASSEMBLY.
