Roll Over Protection Frames
Roll Over Protection Frames
  • Tested and Approved to the following standards: AS/1636, ISO5700, SAE J2194
  • Every frame listed held in stock at your nearest BARE-Co Warehouse for instant despatch


  •  MF1, F1 design shown above

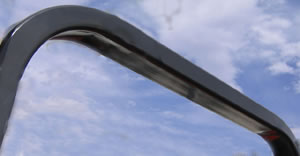

    EMF1 - Hoop Type Design shown above

    Click Pic above for SEAT BELTS

    New!

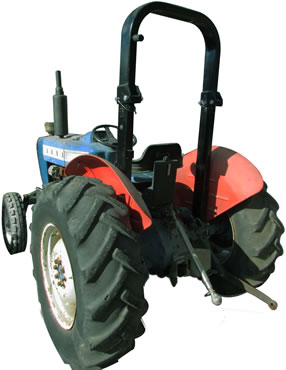

    F10 - Heavy Duty, Low Cost
    Folding ROP Frame
    R.O.P. FRAMES (2 Post unless 4 Post stated)
    DESCRIPTION
    PART No.
    HEIGHT
    above top of axle housing (inches)
    WT.
    Lbs
    CASE / DAVID BROWN
    Late models with solid reinforcing bars under flat top fenders, 4 post frame bolts on top of fenders.
    CASE2
    (4 post)

    123
    FORD
    9N, 2N, 8N, DEXTA, 2000, 2100, 3000
    600, 700, NAA, 501, 601, 701
    YOUR
    CHOICE
    EMF1
    (hoop type)

    MF1
    (cross bar type)
    63"

    64"

    82

    98
    861
    MF1
    (cross bar type)
    64"
    98

    MAJOR, POWER MAJOR, SUPER MAJOR, 3600, 3610, 4000, 4100, 4300, 4310, 4600, 4610 (4610 with reinforced guards req spacer block)
    5000, 5600, 5610, 6600, 6610, 7000, 7600
    800, 900, 801, 901

    F1
    64"
    176
    9N, 2N, 8N, DEXTA, 2000, 2100, 3000
    600, 700, NAA, 501, 601, 701, 861

    MAJOR, POWER MAJOR, and EARLY SUPER MAJOR
    (up to 1960 ie. with axle drum brakes - NOT WITH STEERING BRAKES).
    F10
    Heavy Duty
    Folding

    60"

    220

    8000, 8600, 9600

    F2
    90"
    289
    I.H.C. - CASE
    B250, B275, 2404, A414, 434, 374, 384, 444 (handbrake on fender)
    F1
    64"
    176

    B414 (UK. built , handbrake not on fender)

    F1
    + KHB2
    h/brake kit
    64"
    178

    564 with square axle housing

    IHC4SQ
    65"
    198

    624 German model with round axle

    IHC7
    76"
    242
    JD
    1010, 1020, 1030, 1120, 1130, 1630, 2010, 2020, 2120, 3010
    Not suitable for models fitted with high mounted seats
    If in doubt order JD2 below
    F1
    64"
    176

    4230, 4240, 4250, 4420, 4430

    JD3
    89"
    320
    KUBOTA
    M4050
    F1
    64"
    176
    MASSEY FERGUSON
    TO20, TO30, TO35, F40, TE20, MF30, 35, 50, 130, 135, 148, 150, 240
    MF1
    64"
    97
    F10
    Heavy Duty
    Folding

    60"

    220
    Economy frame (hoop type) TO20, TO30, TO35, F40, TE20, MF30, 35, 50, 130, 135, 148

    EMF1

    63"
    82

    MF65, 150, 165, 168, 175, 178, 185, 188, 250, 265, 275, 290, 298, 675, 690
    (round or square axles) *high clearance tractors with thick (6") fender spacers-order 14" bolt kit (special)

    F1
    64"
    176
    F10
    Heavy Duty
    Folding

    60"

    220
