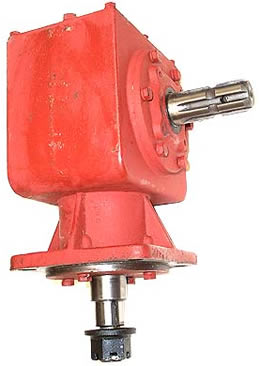

50HP HIGH RATIO BALL/ROLLER BEARING GEARBOX
Part No. B1567 - 1:2.83 HIGH RATIO INCREASE

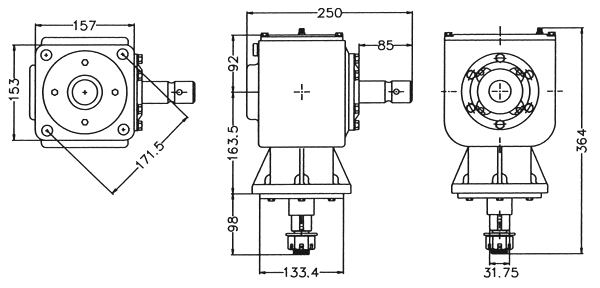

SPECIFICATIONS

A = 135mm (5.3")


BEARINGS:


INPUT SHAFT:
OUTPUT SHAFT:


Taper Roller Lower
Bearings - Accept High
Belt Tension

1 3/8" x 6 spline
1 1/4" with 1/4" keyway
Standard Rotation
