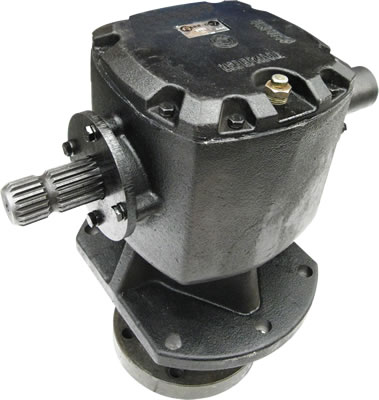

200HP Rotary Cutter Gearbox
200HP Rotary Cutter Gearbox
Part No. B9992 - 1:1.65 ratio Increase
Part No. B9993 - 1:1


SPECIFICATIONS
HOUSING:
SHAFTS:
GEARS:
SEALS:


BEARINGS:
OIL:
WEIGHT:
INPUT SHAFT:
60-45-10 Nodular
UNS G51200
UNS G51200
Input - Double Lipped
Output - Unitary Lower Seal with Standard internal Lower Seal.
Tapered Roller
EP-140
176 lbs, 80kg
1 3/4" x 20 spline


A = 200 mm (7.87")
NOTE: Rotate Gearbox for Reverse Rotation

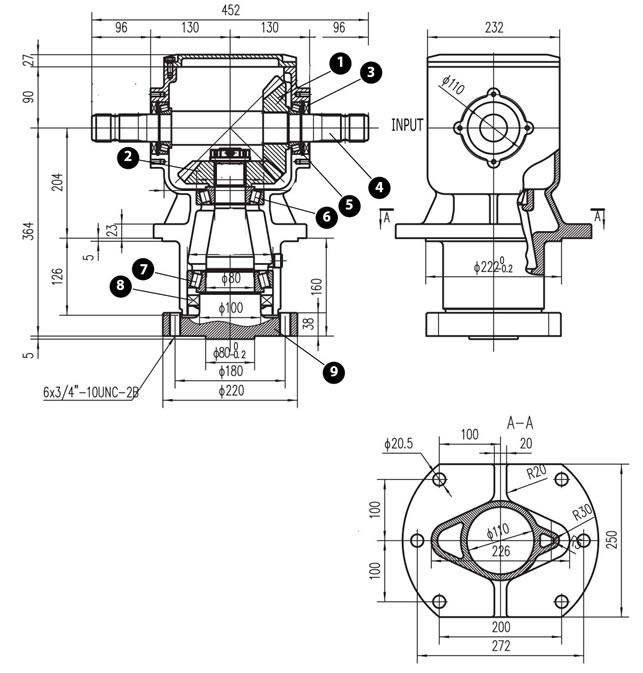

SPARE PARTS
REF
PART No.
DESCRIPTION
1
Input Pinion 1:1./65 Ratio
B3234 Input/ Output Pinion 1:1 Ratio
2
Output Pinion 1:1./65 Ratio
B3234 Input/ Output Pinion 1:1 Ratio
3
Input Seal 2 Req.
4
Cross Shaft
5
Cross Shaft Bearing 2 Req.
6
Inner Lower Bearing
7
Outer Lower Bearing
8
Inner Lower Seal
Outer Lower Seal
9
Output Shaft
