80 HP "T" Series Gearbox
80 HP "T" Series Gearbox
Part No. B7513 - 1:1 ratio
SPECIFICATIONS

A = 290mm (11.4")
B = 165mm (6.5")
C = 155mm (6.1")
HOUSING:
SHAFTS:
GEARS:
SEALS:

BEARINGS:
OIL:
WEIGHT:
INPUT/ OUTPUT SHAFT:
60-45-10 Nodular
UNS G51200
UNS G51200
Triple Lipped
Spring Loaded
Tapered Roller
EP-140, 38oz, 1.12L
82 lbs, 37.2kg
1 3/8" x 6 spline
Standard Rotation

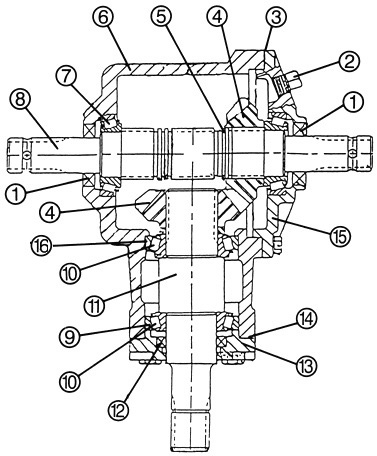

SPARE PARTS
REF
PART No.
DESCRIPTION
1
Oil Seal (2 req)
2
Breather Plug
3
Shim gasket (use qty as req.)
4
Gear 17 Tooth (2 req)
5
Circlip (circlip)
6
Main Housing
7
Cup & Cone ASSEMBLY (2 req)
8
Through Shaft - 1 3/8" x 6 spline
9
Bearing Cup (2 req)
10
Bearing Cone (2 req)
11
Input Shaft 1 3/8" x 6 spline
12
Input Seal
13
Input Cap
14
Shim gasket (use qty as req.)
15
Cap
