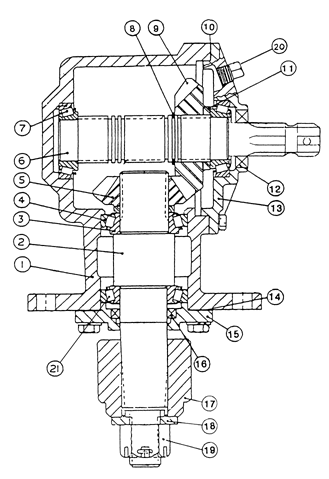

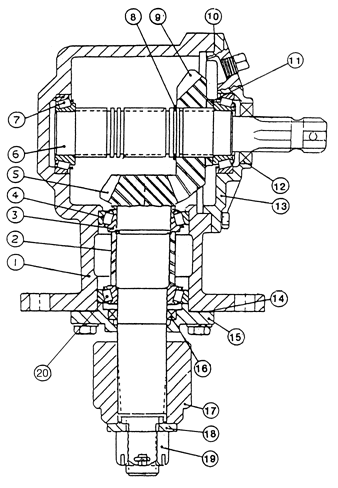

SPARE PARTS
|
|
REF
|
PART No.
|
DESCRIPTION
|
|
1
|
|
Main Housing |
|
2
|
|
Output Shaft |
|
3
|
|
Bearing Cone Top & Bottom |
|
4
|
|
Bearing Cup Top |
|
5
|
|
13 tooth output Pinion suit B2667 (1.46:1 ratio) |
|
17 tooth input/output Pinion suit B6668 (2 used) |
|
6
|
|
Input Shaft (1 3/8" x 6 splines) |
|
7
|
|
Cup & Cone ASSEMBLY (2 used) |
|
8
|
|
Retaining Ring |
|
9
|
|
19 tooth input pinion suit B2667 (1.46:1 ratio) |
|
17 tooth input/output Pinion suit B6668 (2 used) |
|
10
|
|
Shim gasket (use qty as req.) |
|
11
|
|
Spacer |
|
12
|
|
Input Seal |
|
13
|
|
Input Cap |
|
14
|
|
Shim gasket (use qty as req.) |
|
15
|
|
Lower Seal Housing |
|
16
|
|
Output Seal |
|
17
|
|
Hub |
|
18
|
|
Flat Washer (1" ID) included with B7388 |
|
19
|
|
1" x 14 TPI Castellated Nut |
|
20
|
|
Breather Plug |
|
21
|
|
Bottom Bearing Cup |
