50 HP Rotary Cutter Gearboxes
50 HP Ball / Roller Brg. Gearbox
Part No. B9266 - 1:1.93 ratio
SPECIFICATIONS

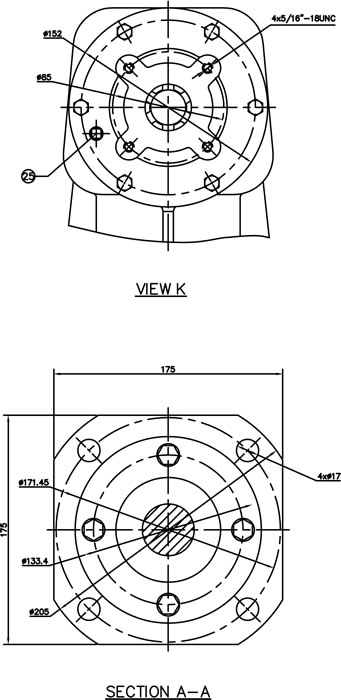

A = 145mm (5.7")
  • Taper Roller Bearing Output Shaft
  • Ball Bearing Input Shaft
  • 1 3/8" x 6 spline Input Shaft
  • Light weight gearbox featuring
    Taper Roller lower bearing

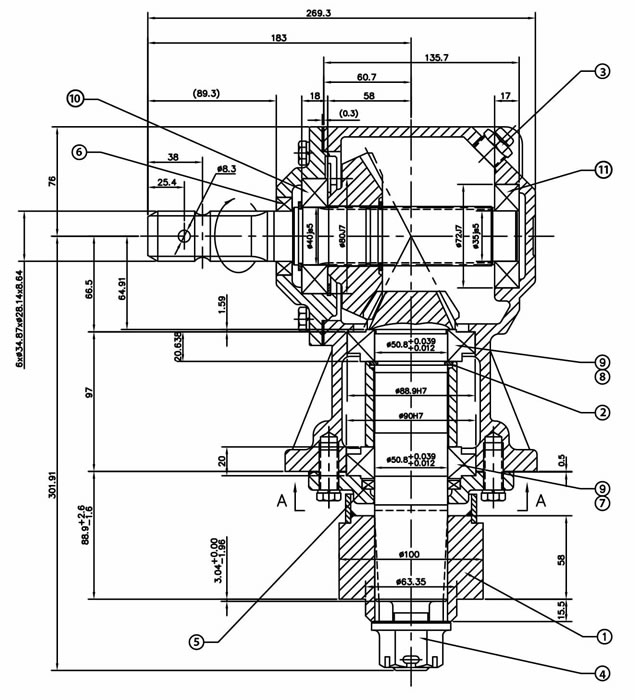

SPARE PARTS
REF
PART No.
DESCRIPTION
1
Hub
2
Retaining Ring
3
Breather Plug
4
1" x 14 TPI Castellated Nut
5
Output Seal
6
Input Seal
7
Bearing Cup
8
Bearing Cup
9
Bearing Cone
10
Bearing
11
Bearing
