Yoke Buttons & Shear Bolts
YOKE BUTTONS &SHEAR BOLTS
YOKE QUICK RELEASE YOKE BUTTONS & SHEAR BOLTS
SAFETY WARNING !
  • U.S. Safety Standards preclude the use of Quick Release Buttons which protrude in the leading direction of rotation when attached to the tractor P.T.O. shaft.
  • Modern Yoke Buttons (as below) protrude in the TRAILING DIRECTION ONLY.
  • Old yokes with Quick Release pins that protrude through the back of yokes MUST BE REPLACED WITH MODERN YOKES.
  • Refer to page PTO 2 "Fast Find" for fast replacement of old, dangerous yokes

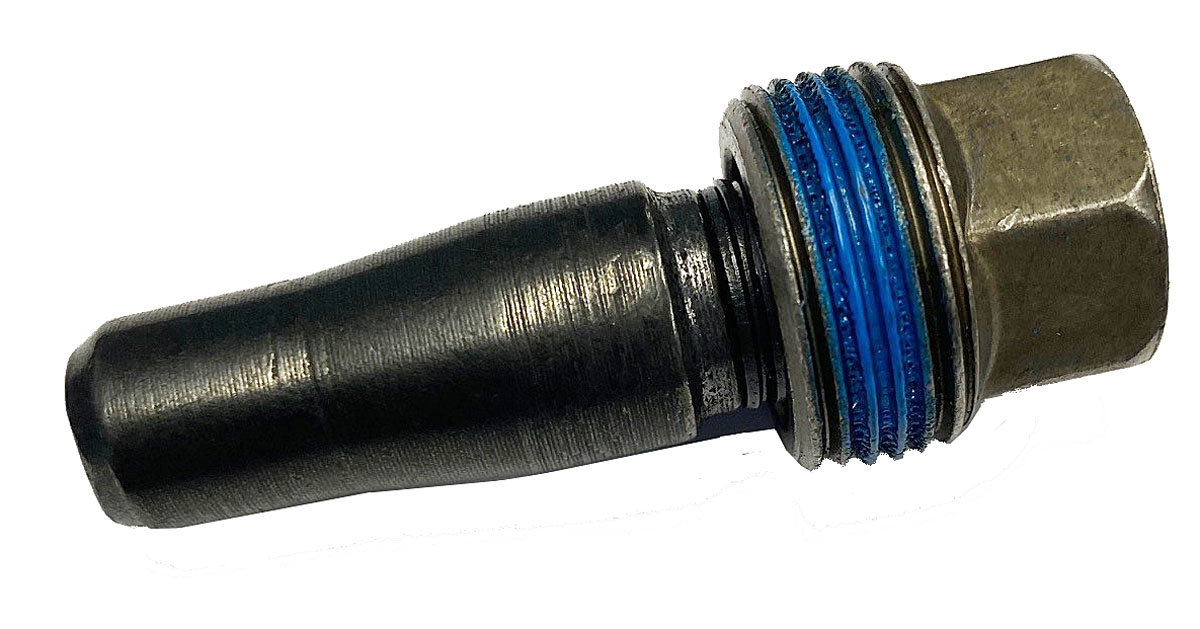

AW10138 Cotter Bolt
= Walterscheid 65.12.06
Suits Walterscheid 1 3/8" yokes & clutches

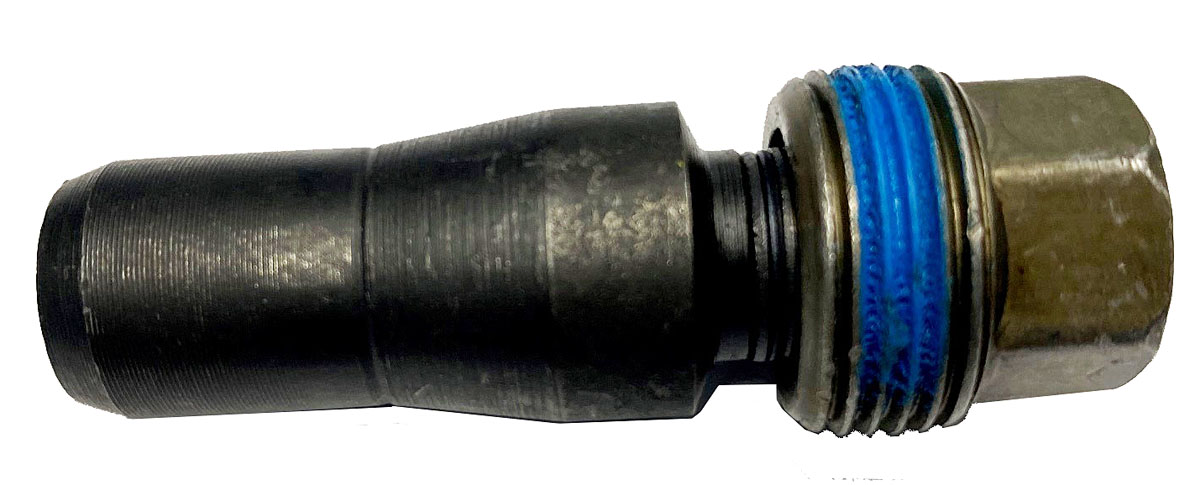

AW10134 Cotter Bolt
= Walterscheid 65.12.08
Suits Walterscheid 1 3/4" yokes & clutches

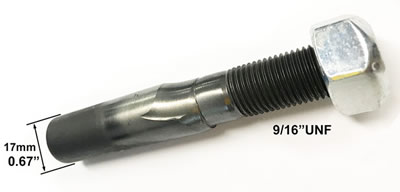

B3728 Replaced by B3724 below


↓
B3724 Upgrade Cotter for 1 3/4" Splined base Bare-Co Clutches

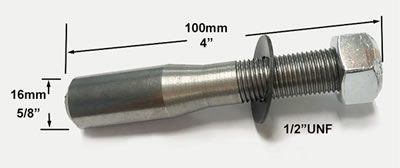

B4728 Cotter Bolt for BareCo 8" (200mm) 1 3/8" Splined Clutch
B4727 Cotter Bolt for BareCo 6" (150mm) 1 3/8" Splined Clutch
B82000 Pack of 5 Shear Bolts 1/2" x 3 1/2"
Fit most U.S. Shear Bolt Yokes

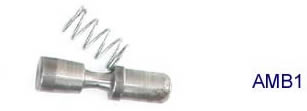

AMB1 for 6N - 12N - 14N - 35N - 44N Shafts

"A" replaces 13mm / 13.8mm / 14mm
 B1090 exclusive BARE-Co design
Replaces HARDY SPICER - Early BARE-Co -
Early BYPY - LUPPY

"A" = 15.8mm
 AB134 suits large size yokes (8-9 series) with button as illustrated (Old BARE-Co / BYPY types)

Shielded type yokes

Shielded type yokes

AB121 suits late type BYPY - BARE-Co shafts
1 3/8" (35mm) Spline Diameter Shielded or unshielded yokes

A134 Suits Bare-Co shielded yokes
1 3/4" (44mm) Spline Diameter


AB120 suits old type (non shielded) BYPY & Bare-Co yokes 1 3/4" (44mm) Spline Diameter


AW138 suits WALTERSCHEID early type

=AGRASET 101-14.8MM

AW134 Suits large 1 3/4" spline - early type yokes

=AGRASET 102-18MM


AW121 suits WALTERSCHEID - BARE-Co late type

=AGRASET 101-14.8MM

AW120 suits large 1 3/4" spline yokes

=AGRASET 102-18MM
