150 mm (6") Slip - Clutch - Components
150 mm (6") Slip-Clutch
Components designed to interchange with most 6" Slip Clutches
and BARE-Co B4164 - B4166 - B4156
     150mm (6") OD Clutches

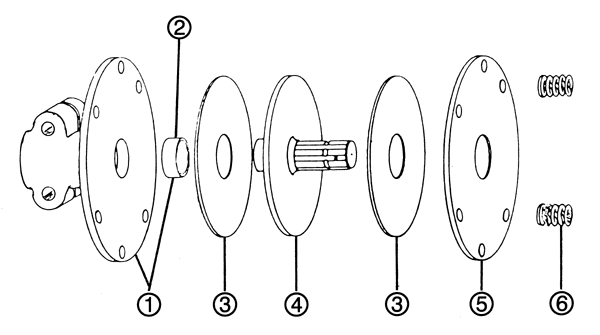

REF
PART No.
DESCRIPTION
1
1 3/8" x 6 Spline base ASSEMBLY (includes bush)
1 1/4" Round Bore 1/4" keyway base (includes bush)
1 3/8" Round Bore base ASSEMBLY (includes bush)
1 3/4" x 20 Spline base (includes bush)
2
Bush 1 1/8" ID
3
Friction Disc 5" OD x 1 3/4" ID
4
1 3/8" x 6 spline Drive Plate 5" OD - 1 1/8" Dia Spigot
5
Pressure Plate
6
Spring (6 req.)
Blue Heavy Duty Spring (6 req.)
