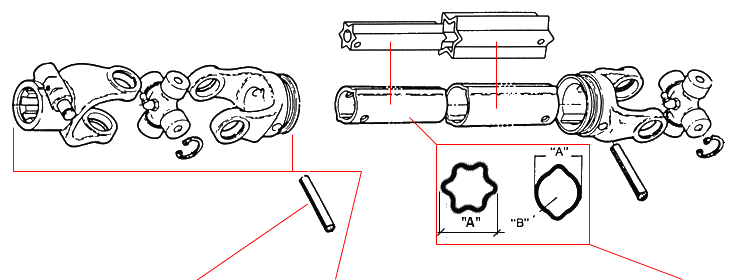

Replacement parts for WALTERSCHEID Shafts
& LARGE (STAR PROFILE) BARE-Co Shafts
MORE PARTS FOR THIS SHAFT ON THE NEXT PAGE
SHAFT SERIES
ROLL PIN
INNER JOINT
A
B
INNER TUBE

B1140
(2 req)
Part No.
A10001
23.8mm
15/16"
5mm
3/16"
3ft
5ft
= A235
= A235X5

A1065
(2 req)
Part No.
A20001
34.5mm
1 3/8"
4mm
5/32"
3ft
5ft
= A344
= A344X5

Order
parts
34.5mm
1 3/8"
4mm
5/32"

Standard for W210-W2300
Part No. A21001
34.5mm 1 3/8"
4mm 5/32"
Spec. for 39.5mm tube


LEMON PROFILE TUBE

3ft
5ft
= A395
= A395X5


Order parts
39.5mm 1 1/2"
5mm 3/16"

A1075
75mm long
(2 required)

OR

A1090
90mm long
(2 required)
Order
parts
39.5mm
1 1/2"
5mm
3/16"

Quick Release Type
A35004
1 3/8" x 6 Splines
for Lemon ProfileTube

P400 Series - Use Bareco Guard
39.5mm
1 1/2"
Lemon Profile
Tube
5mm
3/16"
Lemon Profile
Tube
Quick Release Type
A35001
1 3/8" x 6 Splines
for Star Profile Tube
P400 Series - Use Bareco Guard
51mm
2"
Star Profile
Tube
6mm
1/4"
Star Profile
Tube
OPTIONAL
for W2400 Series.
Star Profile Tube as below

Order
Component
Parts

Star Profile

3ft
5ft
= A510
= A510X5


Hollow Bar

Quick Release Type
A36001
1 3/8" x 6 Splines
P500 Series - Use Bareco Guard
Clamp Type
A36001520
1 3/4" x 20 Splines

A1490
100mm long
(2 required)
Quick Release Type
A026001
1 3/8" x 6 Splines
A026001120
1 3/4" x 20 Splines
P600 Series - Use Bareco Guard
Clamp Type
A026001520
1 3/4" x 20 Splines
61mm
2 7/16"
6mm
1/4"

Star Profile

3ft
5ft
= A616
= A616X5

A1490
100mm long
(2 required)

Order
Component
Parts


HEAT
TREATED

61mm
2 7/16"
6mm
1/4"

Star Profile

1086mm 43"
A616HT
