MF - Front Axle

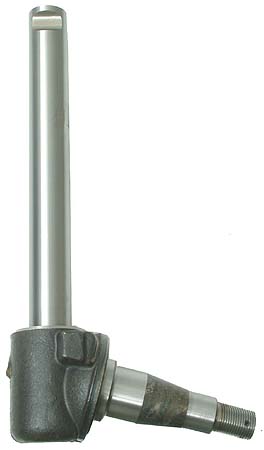

Front Axle Spindle

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
Keyway Position Code "W"
RH Axles have
the keyway here

LH Axles have
the keyway here

Keyway Position Code "X"
LH Axles have
the keyway here


RH Axles have
the keyway here


Keyway Position Code "Z"
LH & RH Axles are the same:
keyway here

LH & RH Axles are the same:
keyway here


Application
Axle
Size
1
2
Bush
3
Thrust
Bearing
4
Spindle
Seal
5
King Pin
Repair Kit
6
Nut/
Washer
LH Spindle
RH Spindle

TO20, TO30, TO35
TE20, TEA20
MF35

A=1 1/4"
B=11"
C=1 1/4"
Keyway Pos.
Code = "W"

B520
=
180349M92
B521
=
180346M92
B2150
=
180345M1
B2151
=
18560X
195175M1
B112
=
180355M1
B278
(2 REQ)

3/4" Dia
Castellated Nut

B3774
=
353928X1

Keyed Washer
B7347
=
180010M1




1 1/4" Dia
Uprated H/D Axles Only

Castellated Nut
B3775
=
882263M1

Keyed Washer
B7346
=
881384M1

MF135, 230, 2135
MF235 -
NOT Orchard

A=1 1/4"
B=11"
C=1 3/8"
Keyway Pos.
Code = "Z"

B9843
=
508546M92
B9843
=
508546M92

Standard Clearance Axles
F40, MF40, MF50, MF65
MH50

A=1 1/4"
B=11 5/8"
C=1 1/4"
Keyway Pos.
Code = "X"

B522
=
182560M92
B523
=
182559M92
B2161
=
196060M1
B279
(2 REQ)

MF235 Orchard
MF245 Orchard
MF250 Orchard
MF20C, 30B, 30D, 40B

A=1 1/2"
B=11 7/8"
C=1.795"
Keyway Pos.
Code = "X"

B9844
=
674386M93
H/D 1 1/4" Nut
B9845
=
674385M93
H/D 1 1/4" Nut
B2162
=
183086M1
B2163
=
196167M1
B113
=
183021M2
B281
(2 REQ)
MF165 Orchard
MF175 Orchard
MF275 Orchard up to s/n N9A324137
A=1 1/2"
B=8 7/8"
C=1 3/8"
Keyway Pos.
Code = "Z"
B9846
=
509904M92
B9846
=
509904M92
Thrust
Washer
1 9/16" x 1/4" thick


B1749
=
513800M1
B1750
(2 REQ)

Includes
Thrust
Washer

Standard Clearance Axles
MF31, 165, 175, 255, 265, 275

A=1 1/2"
B=12 3/8"
C=1 3/8"
Keyway Pos.
Code = "Z"

B9842
=
508571M92
B9842
=
508571M92

Row Crop Axles (NOT LPG)
With length shown
MF165, 175, 180, 255, 265, 275
MF1080
up to s/n 9B49496
MF1085 up to s/n 9B49496

A=1 1/2"
B=15 7/8 "
C=1 3/8 "
Keyway Pos.
Code = "Z"

B276
=
508572M92
B276
=
508572M92

Row Crop Axles
With Heavy Duty Hub
MF, 165, 175, 180, 185, 255, 265, 275,
MF1080 from s/n 9B49496
MF1085 from s/n 9B49496

A=1 1/2"
B=15 7/8 "
C=1.795"
Keyway Pos.
Code = "Z"

B9841
=
532480M92
H/D 1 1/4" Nut
B9841
=
532480M92
H/D 1 1/4" Nut

Front Axle Spindle
