MF - Levelling Box & Parts
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown for reference
only
|

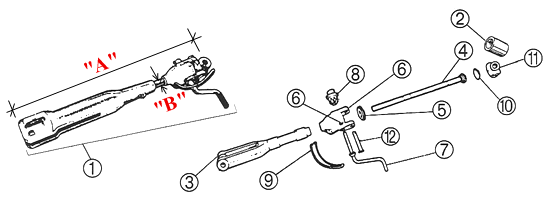

Ref
|
Part No.
|
Replaces
|
Description
|
"A"
|
"B"
|
Application
|
|
Min
|
Max
|
|
1
|
B573
|
180854M91
|
|
18
3/4"
|
22"
|
3/4"
|
TO20,
TO30, Te20
|
|

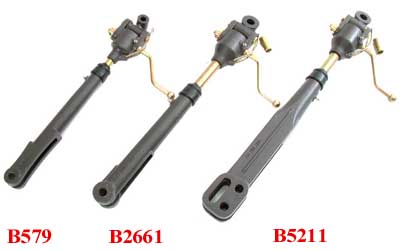

B579
|
182642M94
1884342M92
897679M91
184346M91
184347M93
|
Levelling
Box
ASSEMBLY
Latest design
provides greater
adjustment range |
18
3/4"
|
27"
|
Fits ALL*
Ferguson / MF Tractors with 3/4" dia levelling box shafts (can
replace B573 above)
*
Extra High Clearance models longer than 22" - 27" use B5211
Heavy Duty Conversion 25" - 31" levelling box (below)
|
|
B2661
|
897649M95
|
|
22"
|
26
1/2"
|
1"
|
MF165
H.Duty, 175
|
|
B5211
|
897649EX-HD
1863053M94
|
25"
|
31"
|
MF265, 275,
290, 1080
|
|
2
|
B2999
|
|
5/8"
- 7/8" Conversion Bush |
Reduces H.D. Levelling
box knuckle to standard size
|
|
3
|
B389
|
890674M1
|
Fork
|
¾"
x 10"
|
TO20,
TO30, TO35, Te20
(with B235 shaft)
|
|
B392
|
182391M1
184358M1
897659M1
|
¾"
x 14"
|
MF35,
65, 135, 150, 165 std., 230, 235, 240, 245, 250
(TO20,
TO30 used
with B234 Shaft)
|
|
B3002
|
893405M3
|
1"
UNF x 13 3/4"
|
MF165
H.D., 175
|
|
B3003
|
1861392M3
|
1"
UNF x 17"
|
MF265, 275,
290, 1080
|
|
B485
|
2700371M1
|
(1"
wide gap) |
1"
UNF x 17"
|
Fits 3000 series
tractors
(confirm
measurements)
|
|
4
|
B235
|
897681M2
4297
|
Shaft
|
14"
x ¾" UNC
|
TO20,
TO30, TO35, Te20
(with B389 Fork)
MF65 Hi-Clr, MF165 Hi-Clr
|
|
B234
|
897680M2
185220M1
1660375M1
|
12
1/2" x ¾" UNC
|
MF35,
65, 135,
165, 235, 240, 245, 250, 265 std.
duty
|
|
B2395
|
1860833M2
1860833M1
|
14
1/2" x 1" UNF
|
MF165
H.Duty, 175,
275, 290, 590, 1080
|
|
5
|
B568
|
195457M1
|
Thrust
Bearing |
Standard Levelling
Box
|
|
B530
|
2X183630M1
+ 831263M1
|
Bearing
Set |
H.Duty Levelling
Box (1" dia. shaft)
|
|
6
|
B539
|
193181M1
|
Housing
|
Std. Duty Levelling
Box
|
|
7
|
B225
|
1662382M1
|
Handle
|
Std. + H.D. Levelling
Box
|
|
8
|
B240
|
181345M2
181345M1
|
Gear
|
Std. Duty Levelling
Box
|
|
9
|
B567
|
193092M1
|
Clip
|
Std. + H.D. Levelling
Box
|
|
10
|
B569
|
195644M1
|
Welch
Plug |
|
11
|
B1795
|
180853M1
|
Knuckle
|
Std. Duty Levelling
Box
|
|
B7330
|
897653M2
|
H.D. Levelling
Box
|
|
12
|
B1640
|
180860M1
|
5/8"
dia. Pin (2 per side) |
Std. Duty Levelling
Box
|
|
