MF - Standard Hydraulic Repair Kits
MF Standard Hydraulic Repair Kits
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only

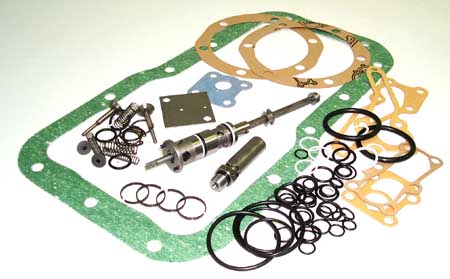

INCLUDE VALVES - PISTON RINGS - SEALS AND GASKETS
Major Hydraulic Kits on the
NEXT PAGE

** ONE PART NUMBER
COVERS THE LOT



PART No.**
CONTENTS
APPLICATION
B600

1 - B703 Relief Valve
1 - B705 Control Valve
1 - B1837 Pump Base Gasket
1 - B1842 P.T.O. Gasket

1 - B1840 Ram Cyl. Gasket
1 - B1836 Lift Cover Gasket
2 - B1839 Side Plate Gasket
Overhaul Instructions

TO20, TO30, TE20, TEA20
All models with Relief Valve in pump.
[Very late TEA20 has valve in lift cover]
B601

Includes All Above Plus
4 - B704 Pump Poppet Valves + B5214 Ram Cyl. Rings
B602

1 - B702 Relief Valve
1 - B706 Control Valve
4 - B2381 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B1802 "O" Ring Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

TO35 from 179304
MF50 from 568747
Earlier models have smaller pistons without rings
MF35, 65

B604

1 - B2389 Relief Valve
1 - B708 Update Cont. Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

MF135, 150, 165, 175, 180
1 - B5209 Update Cont. Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit		 1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket		 MF1080, 1085
Early MF285 with (B5209) 1617141M91 Conrol Valve (filter faces UP)
B606

1 - B5208 Control Valve
4 - B2382 Piston Ring
2 - B2374 Valve Chamber Kit

1 - B4802 Seal/Gask. Kit
1 - B2383 Lift Cover Gasket
2 - B1839 Side Cover Gasket

MF231, 240, 250, 255, 265, 270, 275, 285, 290, 298, 360, 383, 393, 670, 690, 698, 699, late MF285 (with MkIII pump, filter faces DOWN)
