Kubota Dual Plate Clutches
Dual Plate Clutches
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
Application
Clutch Kit
Does NOT include Release or Pilot bearing
Cover
ASSEMBLY
Clutch Plate
Release Bearing
Pilot
Bearing
B2150 D,E, DT
B9485
=
35260-14200
32425-14200
67817-14200
MAIN PLATE
B9490
215mm x 25mm
8 1/2" x 15/16"
13 splines
32420-14400
66438-14210
400261

PTO PLATE
B9489
215mm x 35mm
8 1/2" x 1 3/8"
19 splines
32425-14450
B9503
=
38430-14820
BUSH
Not Available
=
66621-1412-0
L235 DT
L275
L275 DT,L2250 DT,F
L2550 DT,F L2650 DT,F
B9200 DCDP,DCEP
L2250DT
B9504
=
0821-06002
L2850, L2850DT
L2950, L2950DT
L3250 DT,F
L3450, L3450DT
L3650, L3650DT
B9487
=
35080-14290
MAIN PLATE
B9506
225mm x 25mm
8 7/8" x 15/16"
13 splines
38150-14400

PTO PLATE
B9489
215mm x 35mm
8 1/2"X 1 3/8"
19 SPLINES
32425-14450
38260-14450

L3750DT
L4150DT
L4850DT with MDT
B9488
=
32530-14203
3230-14200

MAIN PLATE
B2532
Replaces
362002513-5
35820-2513-3
355022513-0
355552513-0
32530-14472
280mm x 40mm
11" x 1 9/16"
14 Splines

PTO PLATE
B9494
240mm x 24mm
9 1/2"X15/16"
10 SPLINES
32530-14403

B9496
=
32530-14820
B2321
=
08121-06203
M4050, M4500, M5500
M7500, M4030, M5030
M6030
M7030 SUDT
M7030
Narrow

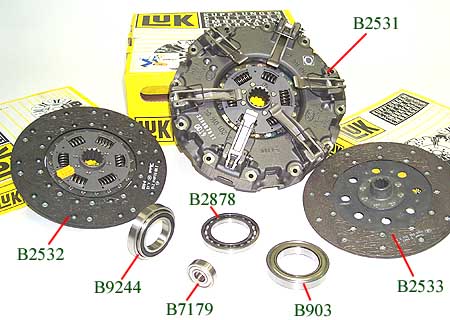

B2531
=362002510-6
358302510-4
365002510-3
355552510-0
INCLUDES
MAIN DISC
PTO Disc not included

280mm - 11"
Dual Clutch

MAIN
B2532
Replaces
362002513-5
35820-2513-3
355022513-0
355552513-0
280mm x 40mm
11" x 1 9/16"
14 Splines
Organic
Disc

PTO.
B2533
=362002514-2
355022514-0
280mm x 24mm
11" x 15/16"
10 Splines

MAIN
B9244
=362002641-0

PTO
B2878
=0810116013

B7179
=
156012342-0
0814106303
M4850, M5850
M4950, M5950
MAIN
B9244
=362002641-0

PTO
B903
=0812106013

M7030, M7030DT
M8030, M8030DT
B9392
=355932510-0
355922510-0
INCLUDES
MAIN DISC
PTO Disc not included

300mm - 12"
DUAL CLUTCH
MAIN
B9393
=355932513-0
355922513-0
300mm x 40mm
12" x 1 9/16"

14 Splines

PTO
B9394
=365002514-2
275mm x 24mm
11' x 15/16"
10 Splines

MAIN
B9244
=362002641-0


PTO
B903
=0812106013

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
