JD - Steering - 2WD models
| Steering
- 2WD models (non hydrostatic steering) |
|

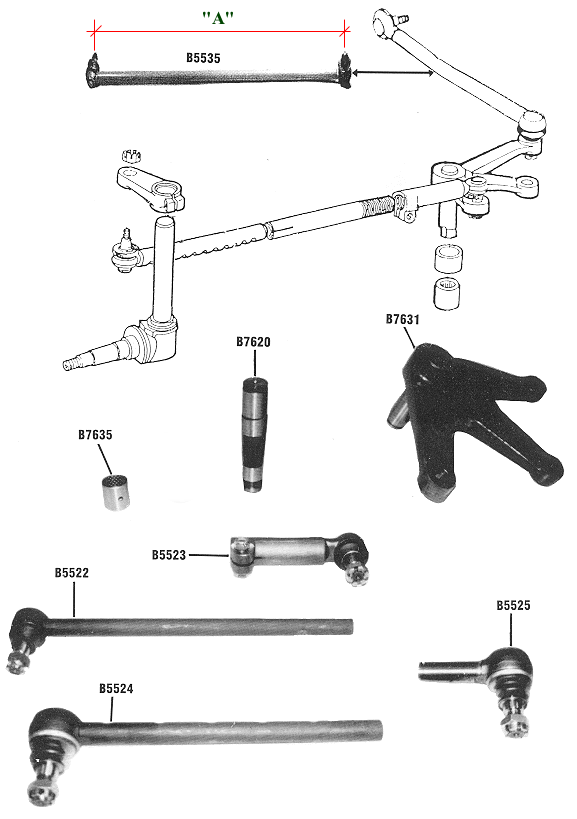

APPLICATION
|
OUTER
END
|
INNER
END
|
BELL
CRANK
|
REPLACEMENT
BELL CRANK
SHAFT
|
BELL
CRANK
BEARING
|
DRAG
LINK
|
|
1020,
1520, 1530
|
B5522
=AL39024
(AT27134)
|
B5523
=AL39020
(AT27130)
|
NLA
|
B6703
1 1/4" diameter
|
B2016
* See Note
=JD9911 (2 req)
|
B5535
"A"
= 35 3/4"
=AL41600
AL39036
|
|
2150,
2350, 2550
2155, 2255, 2355, 2555, 2755, 2855
with straight axle beam
|
N/A
|
NLA
|
N/A
|
|
2020
(straight axle beam)
|
NLA
|
B6703
1 1/4" diameter
|
B2016
* See Note
=JD9911 (2 req)
|
B5536
"A"=
41"
=AL39035
|
|
2030
|
B5524
=AL37505
(AL27533)
|
B5525
=AL37504
(AL27532)
|
N/A
|
Weld-On Ends Only
Check Taper
B5525
3/4"- 7/8" Taper
B5527
5/8" - 3/4"Taper
|
|
2840
|
NLA
|
N/A
|
*
1020, 1520, 2020 to
Serial No. 062660 Use 2 x B7635Bushes
in lieu of Bell Crank Bearings
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
