JD - Engine Kits and Parts: 3 Cylinder
Engine Kits and Parts: 3 Cylinder DIESEL
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
3 Cylinder Models (European & US engines)


Wrist Pin Bushes are included in JD Engine Kits
THREE KIT LEVELS
"EK" - fits in-frame repair (EXCLUDES main bearings) Includes - Pistons/Liners, Bearings etc.

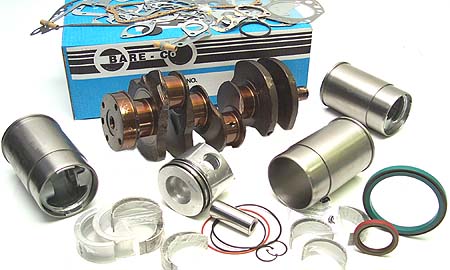

"EKM" - includes all typical items shown in the illustration above - less crankshaft
"EKMC" - as above but including a new crankshaft
EKMC kits can be held in stock as all components are standard size for instant engine ASSEMBLY
NOT INCLUDED IN KIT:
(order separately)

IMPORTANT: Con Rod bolts MUST be replaced
after release of tension.
Select correct Spec bolt from CONROD Page
3 Cylinder DIESEL Models
ENGINE
TYPE
APPLICATION
ENGINE
OVERHAUL
KIT
LINER
INCLUDING
SEALS
PIST / LINER
KIT (1 cyl)
incl. 'O' Rings
RING SET
1 CYLINDER SET (3 ring)
WRIST PIN
BUSH
3 - 152D

3 Cyl
3.858" Bore

1020 Up to engine no. 154765
'O' Ring Grooved Liner
EK53
EKM53
EKMC53
B544
=AR51902
B5489
B5496
=AR70633
B5499
=T23471
(1 3/16" I.D.)

1020 From engine no.154766
Plain Liner
EK54
EKM54
EKMC54
B545
=T32340
B5490
=AR71591
3 - 164D

3 Cyl
4.016" Bore

1520 Up to engine no. 160309
'O' Ring Grooved Liner
EK55
EKM55
EKMC55
B546
=AR51903
B5491
B5497
=AR55759

1520 From engine no. 160310
1530 From engine no. 178601 to 179600 only.
1 3/16" Piston Pin
Plain Liner. NO Grooves.
EK81
EKM81
EKMC81
N/A
B5492
=AR71593

1530 From engine no. 179601
2040 Up to engine no. 349999
1 3/8" Piston Pin, Plain Liner

EK82
EKM82
EKMC82
B5493
=AR78041
B5500
=R55647
(1 3/8" I.D.)
3 -179D
3 Cyl
4.192" Bore

2040 From engine no. 350000
2240 From engine no. 350000
2150, 2255
EK56
EKM56
EKMC56
B548
=R90059
R80724
B5494
=RE24458
B5498
=RE15674
3 - 179T
3 Cyl
4.192" Bore
TURBO

2355N
Imported 1950
+ Industrial Applications
(3-179T Turbo)
EK57
EKM57
B5495
=RE15600
RE22678
B5501
=R57451
(1.61" I.D.)

·All pistons latest High Ring type. Pistons after early
3.858" bore feature:

Ni - resist reinforced ring groove


Molybdenum Keystone Compression Ring


Accumulator Groove



Spring type Chrome Oil Ring


466T - 466A Liners are Induction Hardened.
