Sitrex Type Rakes

1

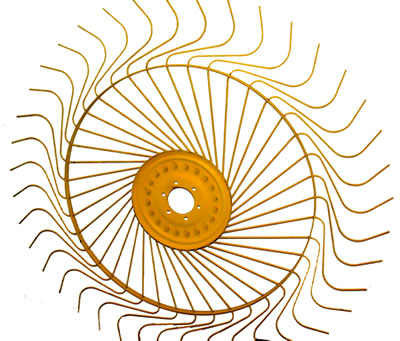

Standard Wheel
Wheel Mounting Bolt Pattern
6 Bolt Holes 0.4" (10mm dia)
Bolt Holes PCD 5.24" (133mm)
Hub Pilot Hole 3.2" (81mm)


3

2

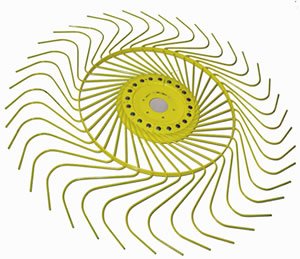

Small Diameter Splitter Wheel

4

REF
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B5813
210180,
P20BG003,
HPBFR31,
5HPBFR31,
WW177,
W16-0801
804-210180
R.H. RAKE WHEEL
55" (1.4mtr) Dia.
H.Duty (7mm) dia Tines
SITREX. All
HOWARD
SILVAN
GEHL
JOHN DEERE
OTMA
ROSSI
H&S
M&W
NEW HOLLAND
WESTWARD
FRONTIER
WR1112, 1116, 1212C, 1214C, 1216C, 1218, WR3008, 3010, 3012, 3310, 3312, 3313, 3315
B5814

210181,
P20BG004,
HPT174,
5HPT174,
RW178,
W16-0802

L.H. RAKE WHEEL
55" (1.4mtr) Dia.
H.Duty (7mm) dia Tines
2
B5817

HR200802

SMALL DIAMETER
L H.SPLITTER WHEEL

49 1/2" (1.25mtr) Dia

OPTIONAL EXTRA ON V RAKES

OPTIONAL EXTRA ON V RAKES
B5818

HR200801

SMALL DIAMETER
R H.SPLITTER WHEEL

49 1/2" (1.25mtr) Dia

OPTIONAL EXTRA ON V RAKES

3
B5815
210621,
P25AG005

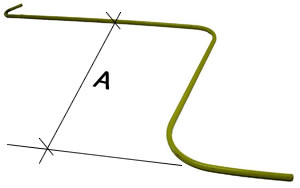

HEAVY DUTY TINE
0.275" (7mm) Wire dia
"A"=10.8" (275mm)
ALL ABOVE RAKES
(Not for small Splitter Wheel)
4
B5819
HR205041
HUB ASSEMBY
Includes Stub Axle
and Bearings
ALL ABOVE RAKES
(also fits Small Splitter Wheel)

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
