Ford - PTO Parts
PTO Parts
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.


Ref
Part No.
Replaces
Description
Application

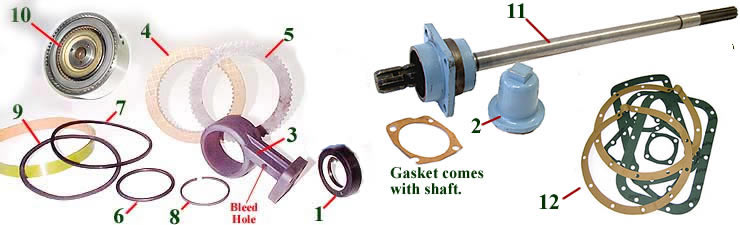

1

P.T.O.
Oil Seal
Dexta, Super Dexta
E27N7305A
Fordson Major, Power Major, Super Major, ALL E27N Models
D9NN703BB
3944079

2/3/4000, 26/36/4600
2610, 3610, 4110, 4610

C5NNN710B
1819064

5000, 7000, 5600, 6600, 6700, 7600, 7700, 5610
6610, 7710
with Single Speed PTO Only

2
C5NN726B
1801859
P.T.O. Cap
2N, 9N, 8N
2000, 3000, 4000, 5000, 7000, 5600, 6600
6700, 7600, 7700, 5610, 6610, 7710
with Single Speed PTO Only
B4372
C0NN-A760-A
81820813

5000, 7000, 5600, 6600
6700, 7600, 7700, 5610, 6610, 7710
with Dual Speed PTO Only

3
B1315
C7NNN776C
1818776
Shaft Support
[with oil bleed hole]

5000, 7000

B1316
D2NNN776A
1826819
Shaft Support
[plain]

5600, 6600, 6700, 7600, 7700, 5610, 6610
7710, 7810, 7910, 8210

4
B1314
C9NNP743D
1822308
Friction Disc
[bronze]

5000, 7000, 5600, 6600, 6700, 7600, 7700
5610, 6610, 7710, 7810, 7910, 8210

5
B1313
PBB77573A
1808607
Friction Disc
[steel]
6
B1472
373227S
3416992
"O" Ring
[inner]
7
B1428
C0NN7A548A
1805281
"O" Ring
[outer]
8
B7351
313283
1809513
Metal
Seal Ring
9
B1408
D3NNP733A
1833907
Std Spring
.165" thick
10
B9219
D3NNN751D
3 Disk Clutch Cover

5000, 7000

B9220
EONNN751BA
5 Disk Clutch Cover

5610, 6610, 6710, 7610, 7710

11
9N-70038
1 3/8" Conversion Shaft ASSEMBLY
(Supplied complete with Cap)
2N, 9N, 8N

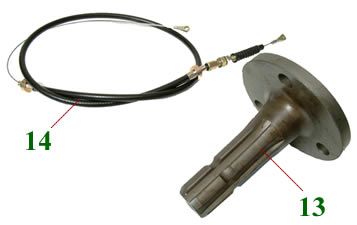

12

Transmission Gasket Set
13
5185602
4983660
PTO SHAFT
1 3/8" x 6 splines

3435, 3830, 3935, 4030, 4135, 4230, 4430, 4635, 4835, 5635, 6635, 7635, 8045, 8065, 8160, 8260, 8360, 8430, 8560, 8630, 8830,
TD55D, TD65D, TD75D, TD85D, TD95D,
TL100, TL70, TL80, TL90,
TN55/D/S/V, TN60VA, TN65/D/S/V/F/N, TN70/D/F/S, TN75/D/F/S/V/N, TN80/F, TN90/F, TN95/F/NA/VA

5185601
5149242
5140119
PTO SHAFT
1 3/8" x 21 splines
14
5172111
5139172
HYDRAULIC CABLE

4635, 4835, 5635, 6635, 7635, TL70, TL80, TL90

PTO Parts
