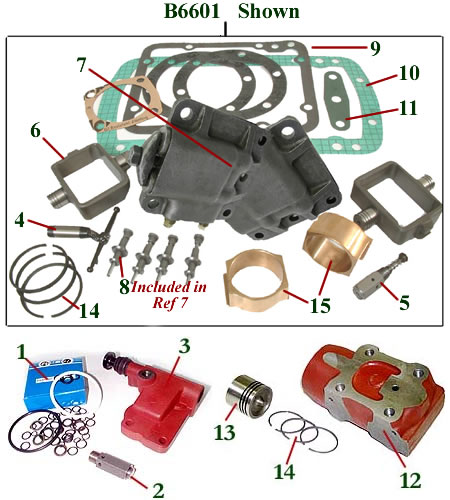

Ford - Hydraulic Valves & Parts
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
|
16
|
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B2804
|
|
Hydraulic
System "O" Ring Kit
|
Dexta,
Super Dexta
Major, Power Major, Super Major
|
|
B2803
|
2000 (3cyl),
3000, 2600, 3600, 2310, 2610, 2910, 4100
|
|
B1422
|
5000,
7000
(5600,
6600, 7600, 5700, 6700, 7700 with
3 3/4" ram piston)
|
|
B1423
|
(5600,
6600, 7600, 5700, 6700, 7700
with 4 1/8" ram piston)
5110,
5610, 6610, 6710, 6810, 7610, 7710
|
|
2
|
B5286
|
EIADDN984
1717251
|
Hydraulic
Cylinder Relief Valve
|
Major,
Power Major, Super Major
5000, 7000
|
|
3
|
B8210
|
E0NND960AA
|
Tractor
Remote Hyd. Diverter Valve
|
2000 (3cyl),
3000, 4000 (3cyl), 2600, 3600, 3900, 2610
3610, 3910, 4110, 4610 |
4
|
|
9N640 |
Control Valve |
2N, 9N |
5
|
|
8N638 |
Safety Valve |
9N, 2N, 8N |
6
|
|
9N615 |
Piston |
7
|
|
9N621
+
9N622
|
Pair of Complete Valve Chamber Assemblies |
8
|
|
9N626
9N627
9N628
9N629
|
Valve for Valve Chamber
(4 req.) |
9
|
|
9N611 |
Pump Base Gasket |
10
|
|
9N502 |
Lift Cover Gasket |
11
|
|
9N553 |
Lift Cylinder Gasket |
12
|
|
9N510D |
Hydraulic Lift Cylinder |
13
|
|
9N530B |
Original Type 3 Ring Piston |
14
|
|
9N675 |
Ring Set (3 steel rings) |
15
|
|
|
Pair of Cam Blocks |
| 16
|
|
|
Hydraulic Gasket Set |
17
|
Standard Hydraulic Repair Kit |
|
|
|
1 - B703 Relief Valve
1 - B705 Control Valve
1 - B1837 Pump Base Gasket
1 - B1842 P.T.O. Gasket
1 - B1840 Ram Cyl. Gasket
1 - B1836 Lift Cover Gasket
2 - B1839 Side Plate Gasket
Overhaul Instructions
|
9N, 2N, 8N |
|
Major Hydraulic Repair Kit |
|
|
|
2 - B1681 Pistons
1 - B1690 Pair of complete Valve
Chambers
1 - B703 Relief Valve
1 - B705 Control Valve
1 - B1837 Pump Base Gasket
1 - B1842 P.T.O. Gasket
1 - B5214 Ram Cylinder Ring Set
1 - B1664 Pair of Cam Blocks
1 - B1840 Ram Cyl. Gasket
1 - B1836 Lift Cover Gasket
2 - B1839 Side Plate Gasket
Overhaul Instructions |
9N, 2N, 8N |
|
