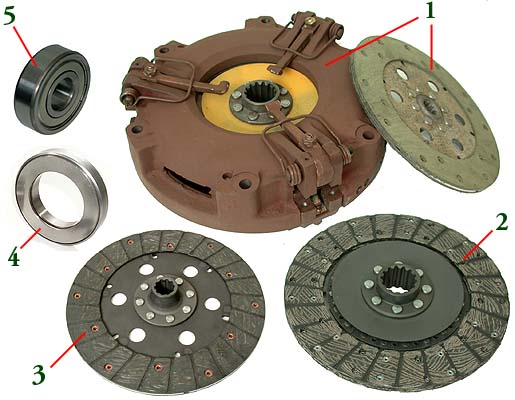

FIAT - 250mm (10") Clutch
250mm (10") CLUTCH
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
NLA

450, 450R, 480,
500, 540
with 3 finger 10" clutch
2
B2870
4968734
MAIN CLUTCH PLATE - RIGID CENTRE
(replaces sprung hub 254 x 40mm x 14 splines)
3
B2863
4968736
PTO CLUTCH PLATE
250 x 25mm x 10 splines
4
B2876
5103178
THRUST BEARING
5
B7179
28040050
FLYWHEEL PILOT BEARING
250mm (10") CLUTCH
