CASE - I.H. Linkage
CASE - I.H. Hitch Parts
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

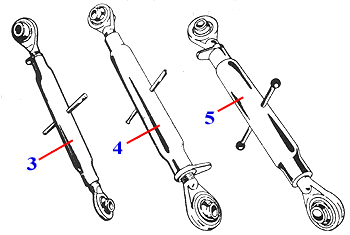

ECONOMY
(1 1/8" UNC)
Most popular to 45HP
HEAVY DUTY
(1 1/4" UNC)
Recom. for Rippers etc.
JUMBO
(1 3/8" UNC)
THE ULTIMATE!
SUPER TOP LINK
(2" UNC)
HEAVY DUTY - ALL
APPLICATIONS
HYDRAULIC TOP LINK
(1 3/8" UNC)
SEE HYDRAULIC SECTION

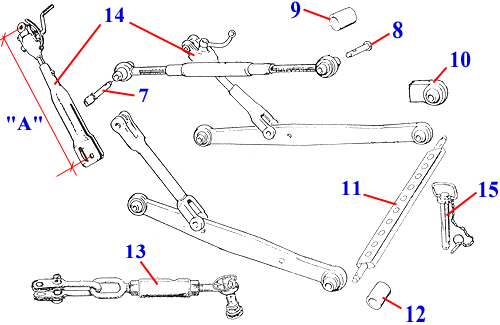

Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B8113
HYDRAULIC TOP LINK
See Hydraulic Section
ALL MODELS
3
B315



CAT 1 - 2 STANDARD TOP LINK
1 1/8'' UNC.
B 250 through 785
Standard duty use
4
B1



CAT 2 HEAVY DUTY LINK
1 1/4'' UNC.
474 upwards Heavy duty use (Ripping etc)
5
B2660



CAT 2 JUMBO LINK
CAT 2 PINS
1 3/8'' UNC.
Large Australian & U.S. Models
B2417



CAT 3 JUMBO LINK
1 3/8'' UNC.
Large Australian & U.S. Models
CAT 3 (1 1/4'' diameter  pins)
6

CAT 3 SUPER TOP LINK
2'' UNC.
CAT 3 Heavy Duty Applications
7
B111
704183R1
SPECIAL CAT 1 TOP PIN
ALL MODELS with Stepped top pin
i.e. B 250 through 885
B110
704182R1
SPECIAL CAT 2 TOP PIN
8
B76



STANDARD CAT 2 (1'' diameter)
TOP PIN
Both ends Australia - U.S. CAT 2 Tractors
B75



STANDARD CAT 1 (3/4'' diameter)
TOP PIN
Implement end CAT 1 applications
B2597



STANDARD CAT 3 (1 1/4'' diameter)
TOP PIN
CAT 3 Tractors
9
B353



3/4'' - 1'' CONVERSION BUSH
Reduces CAT 2 Top link to CAT 1
B519



1'' - 1 1/4'' CONVERSION BUSH (TOP)
Reduces CAT 3 Top link to CAT 2
10
B328
CAT 1
WELD ON BALL END
7/8'' HOLE
AS REQUIRED
B329
CAT 2
WELD ON BALL END
1 1/8'' HOLE
B2591
CAT 3
WELD ON BALL END
1 7/16'' HOLE
11
B121
751764R1
CAT 1 HEAVY DUTY LINKAGE
DRAWBAR
AS REQUIRED
[ Standard 66cm inside length]
B124



CAT 2 HEAVY DUTY LINKAGE
DRAWBAR
B2722



CAT 2 (LONG) DRAWBAR
EXTRA LONG (76cm inside length)
12
B351



7/8'' - 1 1/8'' CONVERSION BUSH
CAT 1 - 2 - 3 CONVERSION
as required
B529



1 1/8'' - 1 7/16'' CONVERSION BUSH
13
B7318
STABILISING CHAIN 13 3/8" - 16 1/2" (34 - 42cm)
Special Design suits 3/4'' + 7/8'' diameter Lower Link Mount hole
B 275, 454, + ALL 74, 84, 85 & 95 series
LEVELLING BOX ASSEMBLIES (components differ from original equip.)
14
B579
STANDARD DUTY LEVELLING BOX - adjust 19" - 27"
(48 - 69cm)
B 250, B 275, 414, 434, 444, 384

NOTE: World Wide Series tractors (474 through 895) use TWO DIFFERENT LENGTHS combined with
TWO DIFFERENT WIDTHS for Lower Fork Slots i.e. 4 COMBINATIONS:
PLEASE SELECT UNIT REQUIRED FROM DIMENSIONS BELOW.

PART No.
DESCRIPTION
FORK WIDTH
ADJUST RANGE
B2661
HEAVY DUTY LEVELLING BOX
17mm (11/16")
" A " = 48cm - 59cm (19" - 23 ")
B7321
40mm (1 1/2")
B5211
17mm (11/16")
" A " = 57cm -70cm (22" - 28 ")
B7322
40mm (1 1/2")
15
B408
B404
B405
B410
B412
B415
B416
B417
DRAWBAR PIN
Dia. x Effective Length
3/4'' x 3 3/4''
3/4'' x 6 1/4''
7/8'' x 6 1/4''
1'' x 6 1/4''
1 1/8'' x 6 1/4''
1 1/4'' x 6 1/4''
1 3/8'' x 7 1/4''
1 1/2'' x 7 1/4''
