CASE - DB: Engine Kits and Parts
Engine Kits & Parts

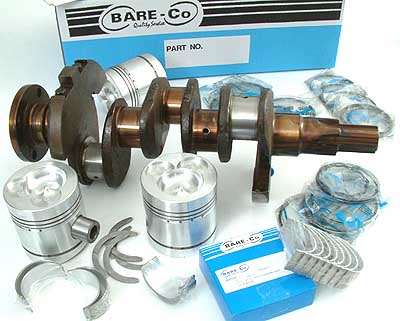

Now available with a NEW CRANKSHAFT for little more than a basic regrind for most applications
3 KIT LEVELS
"EK" - FOR IN-FRAME REPAIR. Includes - Pistons, Wrist Pin Bushes, Piston Rings, Con Rod Bearings, Con Rod Lock Nuts (where fitted), Top & Bottom Gasket Sets.

"EKM" - FOR OUT OF FRAME REBUILD. Includes ALL of the above PLUS - Main Bearings (you specify under-size required at NO EXTRA COST), Thrust Washers, Front & Rear Seals.

"EKMC" - same as EKM but INCLUDING A NEW CRANKSHAFT
IMPORTANT
To reduce your Inventory levels, Bare-Co lists VALVE TRAIN KITS separately below the Engine Kit Part Numbers. Valve Train Kits will fit a range of different engine kits.
NOTE: Liners NOT included in these kits (not originally fitted) - order separately.
Application
Engine Kit
(less liners)
Piston
Ring Set
(1 cylinder)
Liner
Con Rods Bearings (full set)
Wrist Pin
Bush
990 Implematic
[3 5/8 (92.1mm) bore]
Wet Sleeve Engine
Liners ARE included in this kit.

AD4/47A Engine
EK133
EKM133

Liners ARE included in this kit.
B6223
=K902667
B5223
B6224
=K906859
B7816
STD

B7817
0.010"

B7818
0.020"
B6939
=K31669

770 [3 cylinder 3 15/16" (100mm) bore]
Piston length = 4.4" (112mm)

AD3/49A Engine
EK39
EKM39
B6936
=K949721

Piston length = 4.4" (112mm)
B5224
=K261069

Semi Finished
Liner
(not orig fitted)

B6938
=K964857


Required
for rebore to
standard size

(not included
in engine kit)

B6816
STD=
6 x K207436

B6817
0.010" =
6 x K207497

B6818
0.020" =
6 x K207498
780, 880 (3 cylinder)
885, 1190, 1194
[3 cylinder 3 15/16"
(100mm) bore
piston length = 4 .153" 105.5mm]
AD3/55A Engine
355011 Engine
165004 Engine
EK40
EKM40
EKMC40
B6937
=K949474
piston length = 4 .153" 105.5mm]
990 Selectomatic
1290
up to 11052360
[4 cylinder 3 15/16" (100mm) bore - Short stroke engine]
449001 Engine
EK41
EKM41
B6936
=K949721
Piston length = 4.4" (112mm)
B6821
STD=
8 x K207436

B6822
0.010" =
8 x K207497

B6823
0.020" =
8 x K207498
995, 1200, 1210, 1212
1290
from 11052361
1294, 1390
[4 cylinder 3 15/16" (100mm) bore - Long stroke engine]
2200002 Engine
EK42
EKM42

EKMC42
B6937
=K949474
piston length = 4 .153" 105.5mm]
1394
220103 Engine
EK85
EKM85
B973
=K944573

piston length = 4 .153" [105.5mm]
Steel Ring Land Turbo Piston
1410, 1412, 1490, 1494
[4 cylinder 3 15/16" (100mm) bore]

220105, 220101 Engine
EK86
EKM86
EKMC86
B982
STD

B983
0.010"

B984
0.020"

1690
1690 Turbo

On
Application
2 x B6816
STD =
12 x K207436

2 x B6817
0.010" =
12 x K207497

2 x B6818
0.020"
12 x K207498

1594, 1694

N/A
N/A
Engine Kits & Parts
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.
