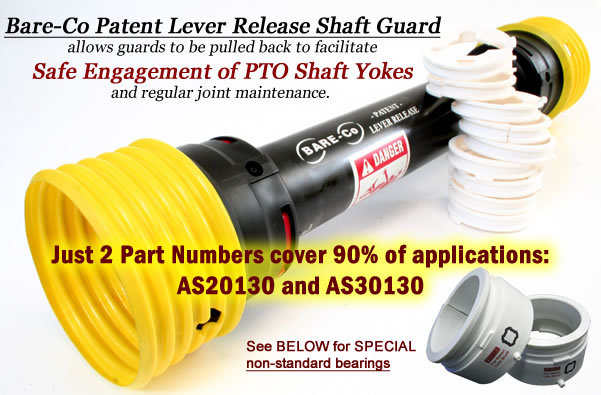

Shaft Guard
SHAFT GUARD
AS 1121.4-2007 APPROVED
ISO 5674 APPROVED
ASAE S522.1 APPROVED

U.V. RESISTANT


An alternate design requiring tools to open is available for European markets.
For this version substitute the last "0" digit of the part number with "1"
eg. AS20090 becomes AS20091

GUARDS EASILY CUT TO LENGTH
PART No.
CLOSED
LENGTH
OPEN
LENGTH
APPLICATION

AS20090
AS20130
AS20180

NOTE:Includes ALL Standard Bearings




40" *
59" *
79" *
* Guards easily
cut to length

63" *
98" *
134" *
* Guards easily
cut to length

SMALL TO MEDIUM DIA SHAFTS

Yoke bearing groove dia 1 5/16" to 2 1/8"
BARE-Co shafts up to and including series 4
BYPY & COMER shafts up to and including series 4 with triangle profile drive tube (see below**)
U.S. 6N - 12N Series
WALTERSCHEID shafts up to and including series W2100
**Add
AS274
SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube. Series S2, S4, S5.
Yoke Bearing groove diameters
70mm (2.75") + 73mm (2.875")

AS30090
AS30130
AS30180



NOTE:Includes ALL Standard Bearings






40" *
59" *
79" *

* Guards easily
cut to length


63" *
98" *
134" *

* Guards easily
cut to length

LARGE DIAMETER PTO SHAFTS

Yoke bearing groove dia 2" to 3 1/8"
BARE-Co shafts series 6 to 2600
BYPY & COMER shafts series 5 to 10 series with triangle profile drive tube (see below**)
U.S. 14N - 35N - 44N - 55N Series
WALTERSCHEID shafts series W2300S to W2600
(see below for W2700, P600, P700)

**Add
AS390

SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube.
Series S6, S7, S8, H8
Yoke Bearing groove diameters
86mm (3.39") + 89mm (3.5")


AS382
SPECIAL BEARING SET NOW AVAILABLE:
for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid W2700 series EARLY type shafts

Confirm shaft groove diameter with this picture

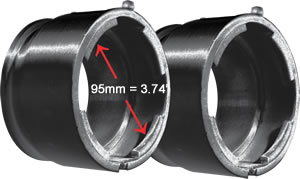

AS395
SPECIAL BEARING SET NOW AVAILABLE:
for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid P600 & P700 series LATE type shafts

Confirm shaft groove diameter with this picture


See Next Page for SAFETY GUARD SPARE PARTS

PTO GUARD EXTENSION BELLOWS
PART No.
LENGTH
DESCRIPTION
AS2E
5 1/2" long.
Replaces existing bellows for applications requiring Cover to end of end yoke.
AS3E
7 1/2" long.
