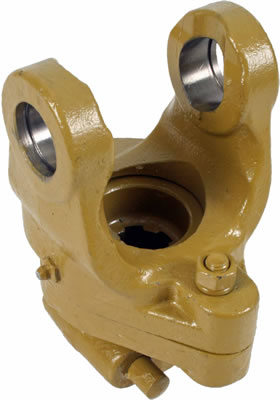

Shear Bolt Yokes
Shear Bolt Yokes
For applications where overload is very unlikely
(Heavy duty adjustable safety clutches are better value)


Part No.
Description
Shaft Series
Torque
1 3/8" x 6 Splines
For A220 uni-cross

850NM (627 ft-lb)
1 3/8" x 6 Splines
For A421 uni-cross

1500NM (1100 ft-lb)
1 3/8" x 21 Splines
For A421 uni-cross
1 3/8" x 6 Splines
For A622 uni-cross
2500NM (1800 ft-lb)
1 3/8" x 21 Splines
For A622 / A600 uni-cross
1 3/4" x 20 Splines
For A622 / A600 uni-cross
1 3/8" x 6 Splines
For A824 uni-cross
3500NM (2580 ft-lb)
1 3/8" x 21 Splines
For A824 uni-cross
1 3/4" x 20 Splines
For A824 uni-cross
1 3/4" x 6 Splines
For A824 uni-cross
1 3/8" x 6 Splines
For A036 uni-cross
2920NM (2154 ft-lb)
1 3/8" x 21 Splines
For A036 uni-cross
1 3/4" x 20 Splines
For A036 uni-cross
1 3/4" x 6 Splines
For A036 uni-cross


ROUND BORE SHEAR PIN YOKE
2 SERIES
4 SERIES
6 SERIES
AE220032S
1 1/4" bore
AE421032S
1 1/4" bore
AE622035S
1 3/8" bore
AE421035S
1 3/8" bore
