MF - Internal Hydraulics
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown for reference
only
 3 |
|
|
27 |
 |
 |
|
Ref
|
Part No.
|
Replaces
|
Description
|
Nominal
Pressure
|
Application
|
|

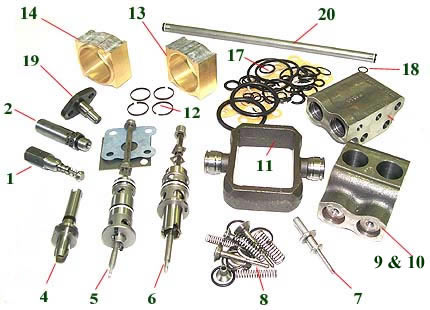

1
|
B703
|
181087M91
|
Relief Valve |
2050 p.s.i.
|
TO20, TO30, TE20, TEA20
(relief valve in pump) |
|
2
|
B702
|
883402M92
883402M94
|
2750 p.s.i.
|
TO35, MF35, 50, 65
|
|
B2389
|
884747M93
884747M91
|
2950 p.s.i.
|
MF135, 150, 165, 175, 180, 235, 255
MF245, 265, 275, 2705, 2745 without Pressure Control |
|
3
|
B705
|
826595M91
|
Control Valve
[B708 includes drilling template to update early pumps] |
TO20, TO30, TE20, TEA20
(replaces all types) |
|
4
|
B706
|
189427M92
|
MF35, 50, 65
|
|
5
|
B708
|
1862486M96
|
MF135, 150, 165, 175, 180
|
| 5A
|
B5209
|
1617141M91 |
MF1080,
1085, & early MF285 (filter faces UP) |
|
6
|
B5208
|
1681789M91
1870763M92
|
MF231,
240,
245, 250, 255, 265, 270, 275, late MF285 (with MkIII pump, filter faces DOWN), 290, 298, 360, 370, 383,
390, 393,
398, 399, 670, 690, 698, 699
|
|
7
|
B704
|
2496
|
Poppet Valve
(4 req.) |
TO20, TO30, TE20, TEA20
hyd. pump end plate |
|
8
|
B2374
|
830997M91
1810678M91
|
Valve Chamber
Kit (2 req.)
(includes 3 alt lock ring types) |
All MF models after
Te20, TO20
i.e. MKI - MKII - MKIII pumps
|
|
9
|
B2375
|
184471M1
|
Complete Valve Chamber
(includes valves & plugs) |
MF35, MF65
(2 req.)
* MF50
from 568747
*
TO35 from 179304
|
(0.91" dia
pistons)
|
|
10
|
B6629
|
1868435M3/VA
1868734M3
888702M1
1868435M3
|
Complete Valve
Chamber
(includes valves & plugs)
Latest design with large dia wire lock rings |
MF135, 148, 150, 165, 175, 240, 245, 265, 275, 290, 355, 365, 370, 390, 398, 399, 690, 698, 699, 1080, 1085
|
|
11
|
B2379
|
190799M1
|
Piston
(2 req.) |
MF35, MF65
+ early
MF135, 165
|
(0.91" dia)
|
|
B2380
|
1860038M1
|
All MF models after
MF65
|
(0.98" dia)
|
|
12
|
B2381
|
892604M1
|
Piston Ring
(4 req.) |
MF35, MF65
+ early
MF135, 165
|
(0.91" dia)
|
|
B2382
|
897493M1
|
All MF models after
MF65
|
(0.98" dia)
|
|
13
|
B2377
|
180924M2
|
Rear Cam Block
(without lip) |
All Non-Italian MF models After
Te20, TO20, TO30
|
|
14
|
B2378
|
180925M2
|
Front Cam Block
(with lip) |
|
15
|

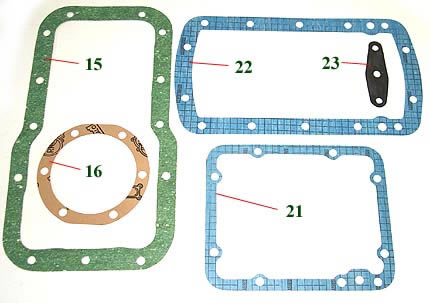

B2383
|
886429M1
886549M2
|
Hyd. Lift Cover
Gasket |
|
16
|
B1839
|
181217M1
|
Side Plate Gasket |
All non Italian
models incl. Te20,
TO20
|
|
17
|
B1802
|
894906M91
|
"O" Ring Kit
Pump + Lift cover |
MF35, 65, 135, 148, 165, 175,
TO35
Note: MKII - III pumps use full kit below
|
|
B4802
|
No Equivalent
|
BARE-Co Full
Kit - all internal gaskets + "O" rings
Covering Mkl - Mkll - Mklll pumps + hyd. lift cover |
Universal kit covers
all (non Italian)
MF models from MF35
i.e. MKIl - MKII + MKIII pumps
|
|
18
|
B466
|
195561M1
|
Standpipe "O"
Ring |
All (non Italian)
models from MF35 onwards
|
|
B467
|
195874M1
|
Standpipe Backup
Ring |
|
19
|
|
898643M1 |
Hydraulic Pump
Locating Dowel |
MF135, 148, 165, 168, 175, 178, 185, 188
MF1080, 1085 |
19a |
B6136
|
898937M1
|
MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699 |
|
20
|
B468
|
898229M1
180906M1
|
Plain Standpipe
(12 1/2")
Can be used to decommission pressure control on late tractors |
T035, 85, 88, 205, 302, 304, MH50, MF50
MF35, 65, 135, 165, 175, 178
200 Series without pressure control |
|
21
|
B1837
|
181065M1
4082
|
Pump Base Gasket |
TO30, TO20, TE20, TEA20 |
|
22
|
B1836
|
180881M1
|
Lift Cover Gasket |
|
23
|
B1840
|
104275
|
Ram Cylinder
Gasket |

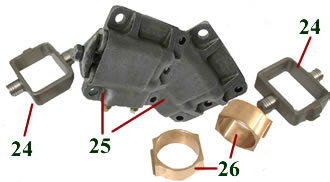

24 |
|
|
Piston (2 req.) |
25 |
|
|
Pair of Complete Valve Chambers |
26 |
|
|
Pair of Cam Blocks |
27 |
|
|
Hydraulic Gasket Set |
|
*
|
TO35,
MF50 prior to this serial no. fit B2375 valve chambers
with B2379 pistons and B2381 rings |
|
