Application |
Notes |
KIT: Incl.
All Bearings |
|
Clutch
Disc |
Release Bearing |
Pilot
Bearing |
1020, 1120, 2020, 2120
1030, 1130, 1530, 1630
1830, 2030, 2130 |
11" Clutch
1" x 15 Spline Disc
|
SEE BELOW
For Late
Series with
13"& 12" Clutch |
|
B9358
with
RIGID CENTRE
Disc
B9359
with
SPRUNG HUB Disc |
|
ORGANIC
B6842
=AL23511
RIGID CENTRE
11" x 1"
x 15 Splines
OPTION |
 |
B6843
=AL31436
SPRUNG HUB
11" x 1"
x 15 splines
|
|
|
840, 940, 1040, 1140 , 2150
up to ser. no.495152
(Feb 1983) =11" Clutch
1640, 1840, 2040, 2240 , 2150
up to ser.no 463068
(Aug 1982) =11" Clutch |
840, 940, 1040, 1140
From Ser.No.495153
(Feb 1983)
2040, 2240, 2255, 2350, 2355, 2355N, 1350, 1550
1750, 1850N, 1950N
2250, 2450 |
13" CLUTCH
1) IMPORTANT
12 1/2" models with 27 spline PTO hub will require machining of flywheel pot to 13.01" dia. x 0.85" depth for latest large dia. clutch.
2) Before ordering
cover or kit: confirm PTO Hub Spline Size. Some tractors shipped with alternate transmission
|
B9360
Non Cab
Models-
mechanical
thrust bearing.
with 1 1/2" x
23 Spline
PTO Hub on clutch cover |
|
B9370
50 Series
+SG2 Cab
hydraulic
thrust bearing
 |
B9840
=AL64417
12 1/2"
with 1 1/2" x
23 Spline
PTO Hub on clutch cover |
| |
|
B6845
=AL36525
SPRUNG HUB
12 1/2 " x 1" x 15 spline
ORGANIC DISC |

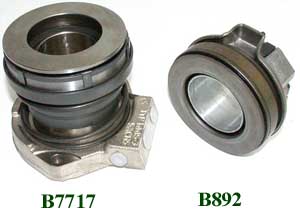

B892
=AL39541
Non Cab Models Only
B7717
=AL39242
Internal Hydraulic Release Bearing
50 Series Models with SG2 cab |
1640, 1840, 2650N
Confirm Cover Spline Size |
|
|
2040S
2140, 2840, 3040, 3140,
2550, 2555, 2650, 2750, 2755, 2850, 2855, 2940, 2950, 2955,
3050, 3055, 3150, 3350
3640 (all have SG2 cab) |
NON CAB
MODELS-
mechanical
thrust bearing.
B9371
ORGANIC
B9372
CERAMIC
with 1 3/4" x
27 Spline
PTO Hub on clutch cover |
|
50 Series
+SG2 Cab
hydraulic
thrust bearing
B9373
ORGANIC
B9374
CERAMIC |
B6840
=AL68485
13"
with 1 3/4" x
27 Spline
PTO Hub on clutch cover |
| |
|
B7695
=AL33126
SPRUNG HUB
ORGANIC
12 1/2 " Dia
x 1 1/4" 10 Spline
OPTION |
|
B6846
=AL57415
SPRUNG HUB
CERAMIC
12 1/2 " Dia
x 1 1/4" 10 Spline |
2130 without HI-LOW
Power Shift |
IMPORTANT
Flywheel machining required for B6839.
12" Clutch
Flywheel dia
12.83"
Pot depth
0.850"
Bolts required
3/8" x 2 3/4" UNC
x 6"
|
|
|
B895
=AL23094
1"x 15 Spline
ORGANIC |
|
2130 with HI-LOW
Power Shift
3120, 3130
2840 |
|

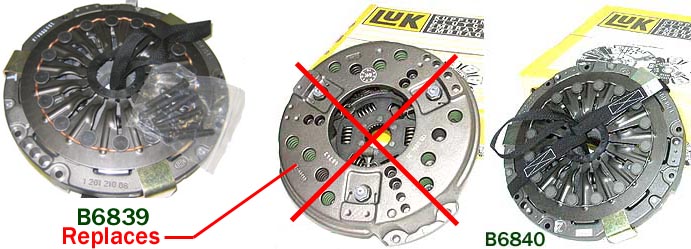

B6839
=AL28039
12"
Diaphragm Clutch replaces Finger Clutch |
B6844
=AL26466
CERAMIC
12" Dia
1 1/4" x 10 Spline
OPTION |
|
B7696
=AL30452
ORGANIC
12" Dia
1 1/4" x 10 Spline
|
3650
3155
3255 |
13" Clutch
1 3/4" x 27 Spline
PTO Hub |
|
B3921
=AL68484
AL68486
13" |
B3922
=AL62237
CERAMIC
13" x 1 1/4"
x 10 Spline |
|
