JD - Hitch Parts - 2
Hitch Parts - 2
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

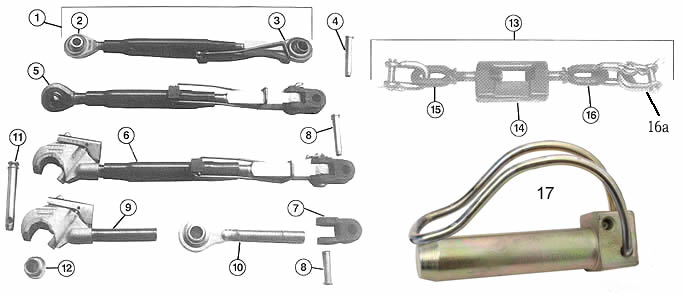

Ref.
PART No.
REPLACES
DESCRIPTION
APPLICATION
1
B6695
AT23758
(AL39170)
TOP LINK

1020, 1120, 2020, 2120, 1030, 1130
1630, 1830, 2030, 2130, 940, 1040, 1140 1640, 1840, 2040, 2040S, 2140, 2240, 1550 1750, 1850, 1950, 2150, 2255, 2350, 2550

2
B6710
AT23759
L.H. THREAD END 20mm EYE
3
B6711
AL18136
R.H. THREAD END 1" EYE
4
B592
AR21912
20mm dia TOP LINK PIN
5
B2006



TOP LINK (WITH BALL END)

3030, 3040, 3120, 3130, 3140

6
B593



TOP LINK (WITH QUICK HITCH)
7
B7510
L41865
T28353
KNUCKLE
8
B2747
AT21754
PIN 3/4" x 2 1/2"
9
B594



1 1/4" R.H. QUICK HITCH END
10
B7483



1 1/4" UNC R.H. END 1" EYE
11
B81
R53296
TOP LINK PIN 1" DIA
12
B5129
F2681R
QUICK HITCH BALL 2" O.D. - 1" I.D.
13
B595
VARIOUS
UNIVERSAL
STABILISER ASSEMBLY

(ADJUST RANGE 41 to 49cm)

1120, 1030, 1130, 2030, 2130
1630, 3030, 3130, 940, 1040, 1140
1640, 1840, 2040, 2040S, 2140, 3040
3140, 3340, 3640, 1850, 1950, 2250
2450, 2650, 2850, 3050, 3150, 3350

14
B484



TURN BUCKLE

Suits Bare-Co B595 Stabiliser

15
B483



L.H. THREAD EYE
16
B1858



R.H. THREAD EYE
16a
B6718



CLEVIS & PIN ASSEMBLY
17
DE18899
LINCH PIPE PIN
JD. 6010, 6020, 6110, 6120, 6210, 6215, 6220, 6310, 6320, 6410, 6415, 6420, 6505, 6510, 6520, 6610, 6620, 6810, 6820, 6910, 6920

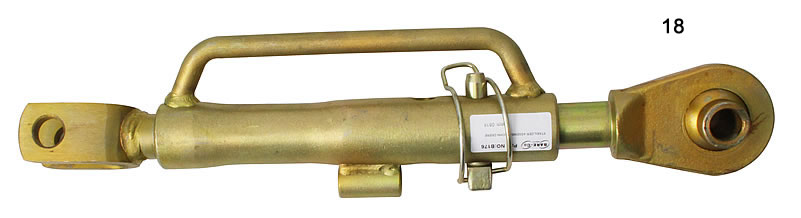

18
AL201043, AL201044, AL201045
STABILISER
