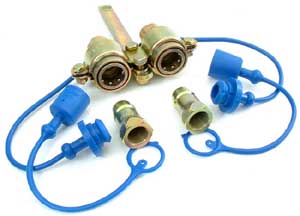

CONTENTS:

• 2 - BP4250-4 Coupling
• 2 - BP8010-4 Male Tip
• 1 - BP5006-4 Mounting Clamp
• 2 - Plastic Plugs
• 2 - Plastic Caps

• ½" N.P.T.F. body
• ½" N.P.T.F. tip

CONTENTS:

• 2 - BP8250-4C Coupling
• 2 - BP8010-4 Male Tip
• 1 - BP5006-4 Mounting Clamp
• 2 - Plastic Plugs
• 2 - Plastic Caps

• ½" N.P.T.F. body
• ½" N.P.T.F. tip

BP9500-4
LEVER COUPLER KIT

• Original equip on leading U.S. tractors
• ½" N.P.T.F. body to fit tractor pipework
• Male Tips Not Included

The 9250 Series Coupler Allows You To:

• Always connect or disconnect at "zero pressure" even with pressurized lines
• Positively lock the valves in an open position
• Accepts any male tip that meets the industry standard (8010)
• Color-coded levers to identify raise and lower lines
• Minimizes spillage. Eliminates spraying
• Easily connect or disconnect with one hand (clamp mounted)
• No back flow-checking
• Patented design
