Silage & Hay Tines


STRAIGHT TINES
PART No.
TINE LENGTH
DESCRIPTION
B84003
810 mm (32")
CONUS I TYPE
M22 Fixing Nut
Tightening Torque for Nut: 280 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

B84004
1000 mm (39")
B84005
1100 mm (43")
B84007
820 mm (32")
CONUS II TYPE
M28 Fixing Nut
Tightening Torque for Nut: 460 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

B84008
980 mm (38 1/2")
B84009
1100 mm (43")
B84010
1240 mm (49")
B84012

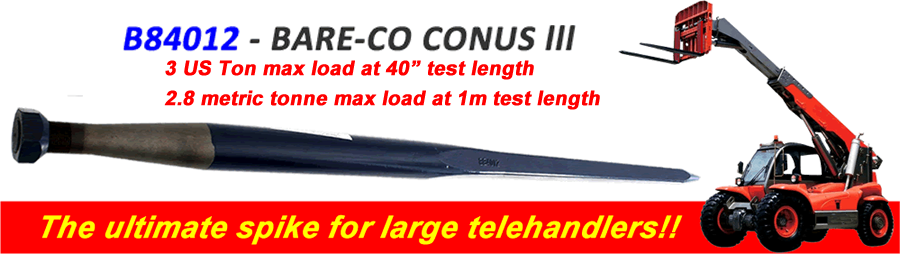

1400 mm (55")
CONUS III TYPE
M33 x 2 Fixing Nut
Tightening Torque for Nut: 1000 ft lbs
Failure at thread due to insufficient Torque is NOT covered by Warranty

CURVED TINE
B84011
600 mm (24")

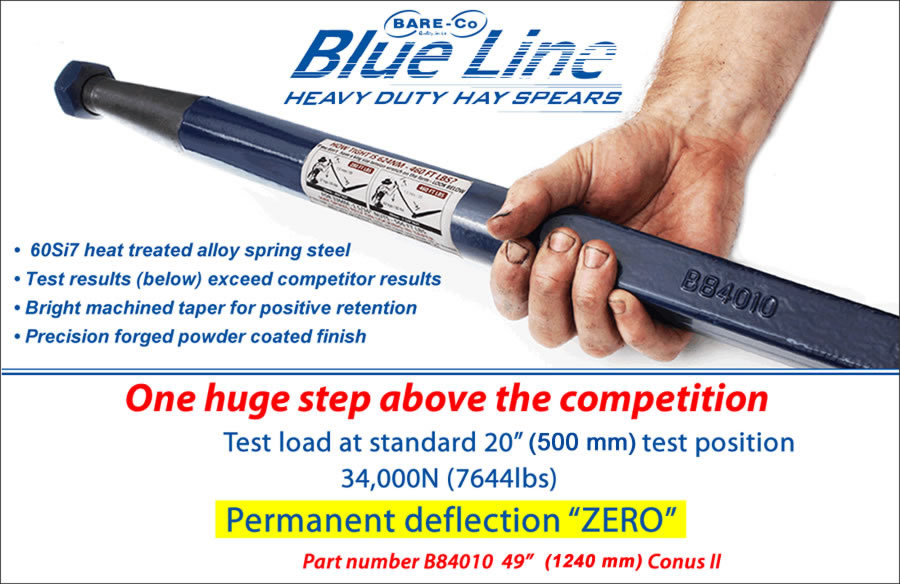

Curved Grab Tyne - CONUS I Keyed Type

WELD-IN MOUNTING SLEEVES
PART No.
DESCRIPTION

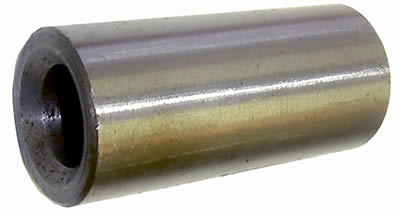

CONUS I TYPE 50mm (1.968") Outside Diameter
CONUS II TYPE 57mm (2 1/4") Outside Diameter
CONUS III TYPE 80mm (3.149") Outside Diameter
Special CONUS I TYPE 50mm (1.968") Outside Diameter - Keyed for Curved B84011 Grab Tyne

REPLACEMENT MOUNTING NUT
PART No.
DESCRIPTION
NUT 22mm (0.866") thread dia fits CONUS I TYPE - Fits LATE TYPE BLUE LINE spikes
NUT 28mm (1.125") thread dia fits CONUS II TYPE - Fits LATE TYPE BLUE LINE spikes
NUT fits CONUS III TYPE BLUE LINE spikes
